Product Summary

The TISP4180H3BJR-S is a bidirectional thyristor overvoltage protector. It is designed to limit overvoltages on the telephone line. Overvoltages are normally caused by a.c. power system or lightning flash disturbances which are induced or conducted on to the telephone line. A single device provides 2-point protection and is typically used for the protection of 2-wire telecommunication equipment (e.g. between the Ring and Tip wires for telephones and modems). Combinations of devices can be used for multi-point protection (e.g. 3-point protection between Ring, Tip and Ground). The TISP4180H3BJR-S consists of a symmetrical voltage-triggered bidirectional thyristor. Overvoltages are initially clipped by breakdown clamping until the voltage rises to the breakover level, which causes the device to crowbar into a low-voltage on state. This low-voltage on state causes the current resulting from the overvoltage to be safely diverted through the device. The high crowbar holding current helps prevent d.c. latchup as the diverted current subsides. The TISP4180H3BJR-S range consists of eighteen voltage variants to meet various maximum system voltage levels (58 V to 320 V). They are guaranteed to voltage limit and withstand the listed international lightning surges in both polarities. These high (H) current protection devices are in a plastic package SMBJ (JEDEC DO-214AA with J-bend leads) and supplied in embossed carrier reel pack. For alternative voltage and holding current values, consult the factory.

Parametrics

TISP4180H3BJR-S absolute maximum ratings: (1)Repetitive peak off-state voltage: ± 58V; (2)Non-repetitive peak on-state pulse current: 500A; (3)Non-repetitive peak on-state curren: 60A; (4)Initial rate of rise of on-state current: 400 A/μs; (5)Junction temperature: -40 to +150°C; (6)Storage temperature range: -65 to +150°C.

Features

TISP4180H3BJR-S absolute maximum ratings:(1)Breakover voltage: ±180V; (2)Impulse breakover voltage: ±189V; (3)Breakover current: ±0.15 to ±0.6A; (4)On-state voltage: ±3V; (5)Holding current: ±0.15 to ±0.6A; (6)Off-state current: ±10 μA.

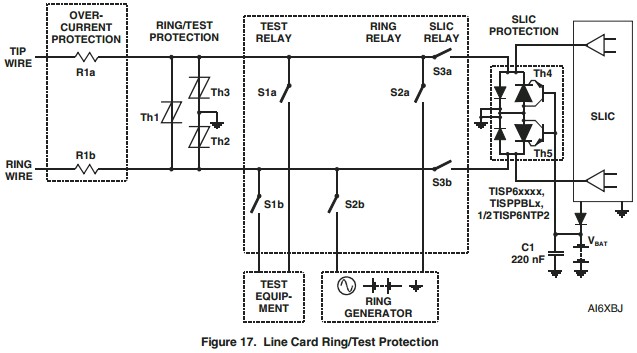

Diagrams

TISP4180H3BJR-S footprint dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TISP4180H3BJR-S
TISP4180H3BJR-S

Bourns

Sidacs PROTECTOR - SINGLE BIDIRECTIONAL

Data Sheet

0-2000: $0.22
2000-5000: $0.21
