Product Summary

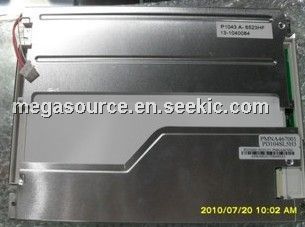

The PD104VT2T1 is a color TFT LCD module which applies to OA product, car TV(must use Analog to Digital drive board). It requires high quality flat panel display.If you must use in high reliability environment can not over reliability test condition.

Parametrics

PD104VT2T1 absolute maximum ratings: (1)Supply Voltage: -0.3 to +4.0 V; (2)Input Signal Voltage: -0.3 to Vcc+0.3 V; (3)Backlight Driving Voltage: 2000 V; (4)Backlight Driving Frequency: 0 to 100 KHz ; (5)Storage Temperature: -10 to +70℃; (6)Operating Temperature: -10 to +60℃.

Features

PD104VT2T1 features: (1)Support the DENB mode ; (2)Image Reversion:Up/Down and Left/Right ; (3)Amorphous silicon TFT LCD panel with back-light unit ; (4)Pixel in stripe configuration ; (5)Slim and compact, designed for O/A application ; (6)Display Colors: 262,144 colors ; (7)+3.3V DC supply voltage for TFT LCD panel driving ; (8)Backlight driving DC/AC inverter not included in this module ; (9)TTL transmission interface.

Diagrams

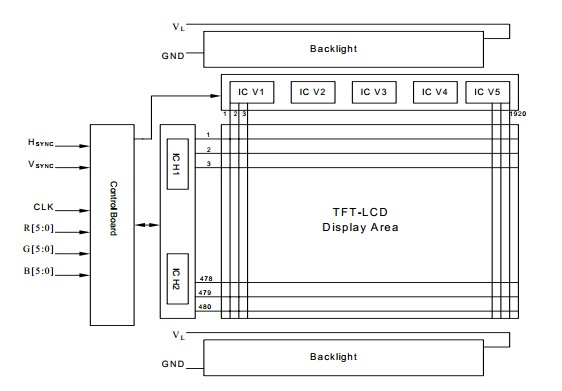

PD104VT2T1 Block Diagram
