Product Summary

The AA104SG01 is a 1 bit, GaAs IC FET digital attenuator in a low cost SOT-6 package. The AA104SG01 has up to 32 dB total attenuation.The attenuator requires two lines of voltage control. The AA104SG01 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required. A total attenuation of 63 dB in 1 dB steps can be obtained by combining the two attenuators.

Parametrics

AA104SG01 absolute maximum ratings: (1)RF input power: 1 W > 500 MHz 0/8 V; 0.5 W @ 50 MHz 0/8 V; (2)Supply voltage: +8 V; (3)Control voltage: -0.2 V, +8 V; (4)Operating temperature: -40°C to +85°C; (5)Storage temperature: -65°C to +150°C.

Features

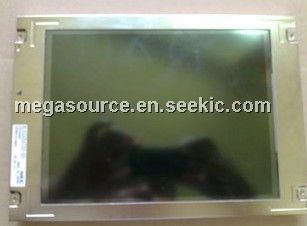

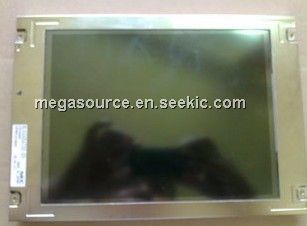

AA104SG01 features: (1)10.4” VGA color display with high luminance (400cd/m2); (2)Wide viewing angle (Vertical:120, Horizontal:140); (3)Built in long life lamps (50,000 h).

Diagrams

AA104SG01 pin connection
