Product Summary
The b104sn03 is a module specification for 10,4 tft-lcd module.
Parametrics
b104sn03 absolute maximum ratings: (1)Power voltage VCC: -0.3 to 4 VDC; (2)Input signal voltage VLH: -0.3 to VCC+0.3 VDC; (3)Operating temperature Top: -10 to +60°C; (4)Storage temperature TST: -20 to +70°C.
Features
b104sn03 features: (1)Input voltage VCC: 3.0 to 3.6 V; (2)Current consumption IA: 310 mArms; IB: 330 mArms; (3)Inrush current I RUSH: 1500 mApeak; (4)Low voltage VIL: 0 to 0.3 VCC; (5)High voltage VIH: 0.7VCC; (6)Power ripple voltage VRP: 100 mVp-p; (7).

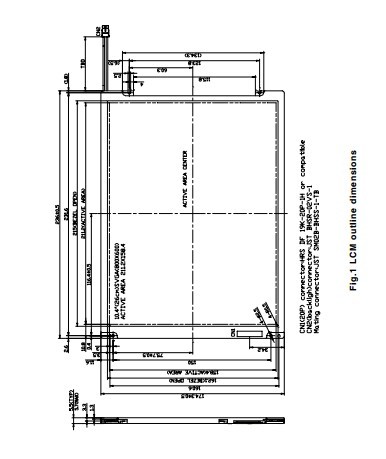

Diagrams
