Product Summary
The lm10v332r is a color stn-lcd module.
Parametrics
lm10v332r absolute maximum ratings: (1)Logic voltage: 5.0 Vcon V; (2)Power consumption: 3 310 mW; (3)Outline dimensions (W x H x D): 264.0 x 193.6 x 8.5 mm; (4)Weight: 450 g; (5)Operating temperature: 0 to +40 °C; (6)Storage temperature: -25 to +60 °C; (7)Brightness: 160 cd/m2; (8)Active area (H x V): 211.2 x 158.4 mm.
Features
lm10v332r features: (1)26 cm [10.4"] VGA format; (2)Cost effective Color STN LCD; (3)High contrast (50 : 1).

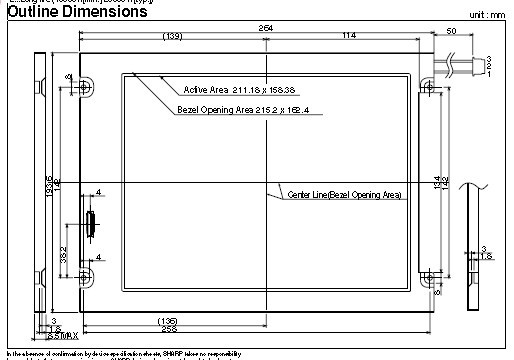

Diagrams
