Product Summary
The lm64c391 is a color STN LCD module.
Parametrics
lm64c391 absolute maximum ratings: (1)Display size: 26 [10.4] cm; (2)Brightness type: 1CCFT(E); (3)Dot format (H × V): 640 × RGB × 480 dot; (4)Duty ratio: 1/240; (5)Dot pitch (H × V): 0.11 × 0.33 mm; (6)Logic voltage: 5.0 Vcon V; (7)Active area (H × V): 211.2 × 158.4 mm; (8)Power consumption panel: 800 mW; Backlight: 2800mW; (9)Panel type *1; (10)Outline dimensions (W × H × D): 242.5 × 179.5 × 8.5 mm; (11)Panel mode: Transmissive; (12)Weight: 390 g; (13)Contrast ratio: 30 : 1; (14)Operating temperature: 0 to +40 ℃; (15)Response time: 300 ms; (16)Storage temperature: -25 to +60 ℃; (17)Brightness: 70 cd/m2.
Features
lm64c391 features: (1)26 cm [10.4] VGA format; (2)Low power consumption ( 3.6 W); (3)High contrast (30:1); (4)Long life backlight (25,000 H) is built-in; (5)Thin(8.5 mm) & lightweight (390 g); (6)Mechanically compatible with CTFT LCD.

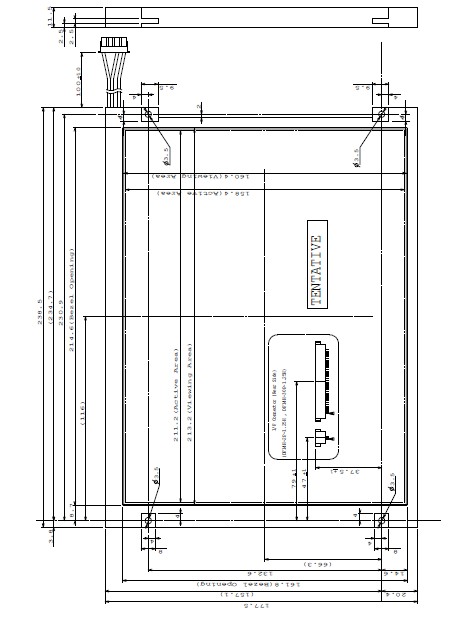

Diagrams
