Product Summary

The lm80c24 is a color STN LCD module.

Parametrics

lm80c24 absolute maximum ratings: (1)Logic voltage: 5.0 Vcon V; (2)Power consumption panel: 1 000 mW; (3)Weight: 700 g; (4)Operating temperature: 0 to +40 °C; (5)Storage temperature: -25 to +60 °C.

Features

lm80c24 features: (1)31 cm [12.1"] SVGA format; (2)High brightness : 200 cd/m2; (3)Less shadowing utilizing SA technology; (4)Mechanically compatible with Color TFT LCD; (5)Wide Viewing Angle [Model : Sharp Addressing.

Diagrams

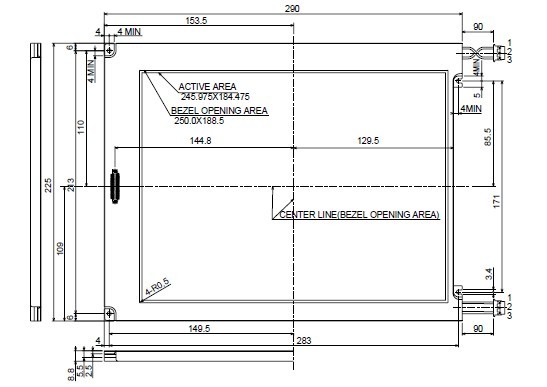

lm80c24 pin connection
