Product Summary
The LM80C27 is a color STN LCD module.
Parametrics
LM80C27 absolute maximum ratings: (1)Display size: 31[12.1] cm [ "]; (2)Backlight type: 2CCFT(E); (3)Dot format (H x V): 800 x RGB x 600 dot; (4)Duty ratio: 1/300; (5)Dot pitch (H x V): 0.1025 x 0.3075 mm; (6)Logic voltage: 5.0 Vcon V; (7)Active area (H x V): 246.0 x 184.5 mm; (8)Power consumption panel: 1000 mW; Backlight: 6840 mW; (9)Outline dimensions (W x H x D): 290.0 x 225.0 x 9.3 mm; (10)Weight: 700 g; (11)Response time: 350 ms; (12)Operating temperature: 0 to +40 °C; (13)Brightness: 200 cd/m2; (14)Storage temperature: -25 to +60 °C.
Features
LM80C27 features: (1)31 cm [12.1"] SVGA format; (2)High brightness : 200 cd/m2; (3)Less shadowing utilizing SA technology; (4)Mechanically compatible with color TFT LCD; (5)Wide viewing angle sharp addressing.

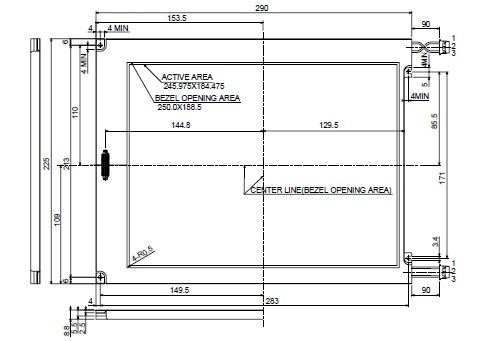

Diagrams
