Product Summary
The LP104V2 is a color active matrix liquid crystal display with an integral cold cathode fluorescent lamp(CCFL) backlight system. The matrix employs a-Si thin film transistor as the active element. It is a transmissive type display operating in the normally white mode. The LP104V2 has a 10.4 inches diagonally measured active display area with SVGA resolution(600 vertical by 800 horizontal pixel array). Each pixel is divided into red, green and blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LP104V2 is intended to support applications where thin thickness is critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP104V2 characteristics provide an excellent flat panel display for office automation products such as notebook PC.
Parametrics
LP104V2 absolute maximum ratings: Power input voltage: (1)Power input voltage: -0.3 to 4.0 V; (2)Operating temperature: 0 to 50 ℃; (3)Operating tempe. for Panel: 0 to 60 ℃; (4)Storage temperature: -20 to 60 ℃; (5)Operating ambient humidity: 10 to 90 %RH; (6)Storage humidity: 10 to 90 %RH.
Features
LP104V2 features: (1)Active screen size: 10.4 inches(264.16mm)diagonal; (2)Outline dimensions: 224.5(H)X 172.0(V)X 5.7(D)mm (Typ.); (3)Pixel pitch: 0.264 mm X 0.264 mm; (4)Pixel format: 800 horiz. by 600 vert. pixels RGB stripe arrangement; (5)Color depth: 6-bit, 262,144 colors; (6)Luminance,white: 170 cd/m2 (Typ.); (7)Power consumption total: 3.9 Watt(Typ.); (8)Weight: 310g (Typ.); (9)Display operating mode: Transmissive mode, normally white; (10)Surface treatments: Hard coating (3H), anti-glare treatment of the front polarizer.

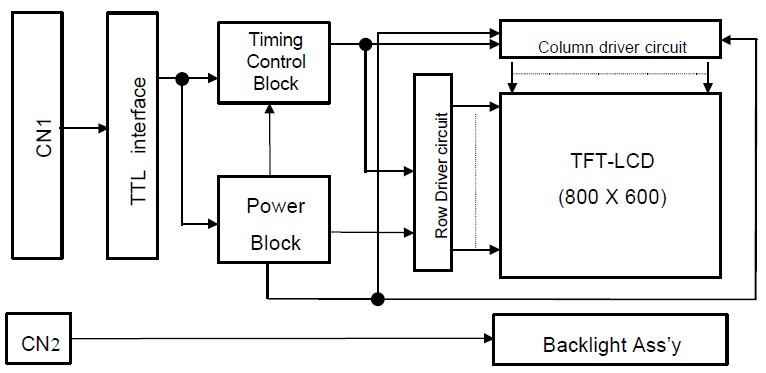

Diagrams
