Product Summary
The lp116wh2-tlb1 mini-flat coupler is a small-outline coupler suitable for surface-mount assembly. The lp116wh2-tlb1 consists of a GaA&As light-emitting diode and an integrated high-gain, high-speed photodetector. This unit is housed in the 6-pin SO package and guarantees a creepage distance of ≥ 5.0mm, a clearance of ≥ 5.0mm and an insulation thickness of ≥ 0.4mm. Therefore, the lp116wh2-tlb1 meets the reinforced insulation class requirements of international safety standard.
Parametrics
lp116wh2-tlb1 absolute maximum ratings: (1)Forward current IF: 20 mA; (2)Forward current derating (Ta ≥ 85°C)ΔIF / ΔTa: -0.5 mA/°C; (3)Peak transient forward current (Note 1)IFPT: 1 A; (4)Reverse voltage VR: 5 V; (5)Output current IO: 10 mA; (6)Output voltage VO: 6 V; (7)Supply voltage VCC: 6 V; (8)Output power dissipation PO: 40 mW; (9)Operating temperature range Topr: -40 to 100 °C; (10)Storage temperature range Tstg: -55 to 125 °C; (11)Lead solder temperature(10 s)Tsol: 260 °C; (12)Isolation voltage (AC,1 min.,R.H.≤ 60%,Ta=25°C) (Note 2)BVs: 3750 Vrms .</FONT></P>
Features
lp116wh2-tlb1 features: (1)Inverter logic (totem-pole output); (2)SO6 package; (3)Guaranteed performance over: -40 to 100°C; (4)Power supply voltage: 4.5 to 5.5V; (5)Input thresholds current: IFHL = 5 mA (max); (6)Propagation delay time (tpHL / tpLH): 60 ns (max); (7)Switching speed: 20 MBd (typ.); (8)Common-mode transient immunity: ±10 kV/us; (9)Isolation voltage: 3750 Vrms; (10)UL approval: UL1577, File No.E67349 Under application .

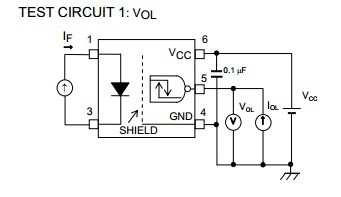

Diagrams
