Product Summary

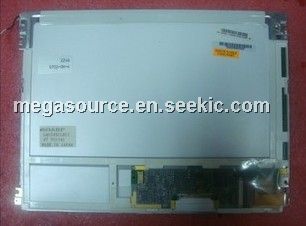

The LQ104S1LH01 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ104S1LH01 is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 800×3×600 dots panel with 262,144 colors by supplying 18 bit data signal (6bit/color), four timing signals,+3.3V or +5V DC supply voltage for TFT-LCD panel driving and supply voltage for backlight.

Parametrics

LQ104S1LH01 absolute maximum ratings: (1)Input voltage VI Ta=25℃: -0.3 ～ Vcc+5.5 V; (2)+5V supply voltage Vcc Ta=25℃: 0 ～ + 6 V; (3)Storage temperature Tstg: -30 ～ +70 ℃; (4)Operating temperature (Ambient)Topa: -10 ～ +65 ℃.

Features

LQ104S1LH01 features: (1)Display size: 26 (10.4")diagonal cm; (2)Active area: 211.2(H)×158.4(V)mm; (3)Pixel format: 800(H)×600(V); (1 pixel＝R+G+B dots)pixel; (4)Pixel pitch: 0.264(H)×0.264(V)mm; (5)Pixel configuration: R,G,B vertical stripe; (6)Display mode: Normally white; (7)Unit outline dimensions: 246.5(W)×179.4(H)×15.5(D)mm; (8)Mass: 620 max g; (9)Surface treatment: Anti-glare and hard-coating.

Diagrams

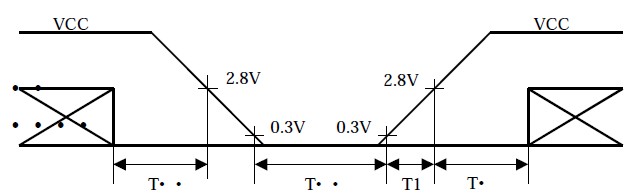

LQ104S1LH01 pin connection
