Product Summary

The LQ104V1DG5B is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ104V1DG5B is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 640×3×480 dots panel with 262,144 colors by supplying 18 bit data signal (6bit/color), four timing signals,+3.3V/ +5V DC supply voltage for TFT-LCD panel driving and supply voltage for backlight.

Parametrics

LQ104V1DG5B absolute maximum ratings: (1)Input voltage VI Ta=25℃: -0.3 ～ Vcc+0.3 V; (2)+5V supply voltage Vcc Ta=25℃: 0 ～ + 6 V; (3)Storage temperature Tstg: -30 ～ +70 ℃; (4)Operating temperature (Ambient)Topa: -10 ～ +65 ℃.

Features

LQ104V1DG5B features: (1)Display size: 26 (10.4")Diagonal cm; (2)Active area: 211.2(H)×158.4(V)mm; (3)Pixel format: 640(H)×480(V); (1 pixel＝R＋G＋B dots)pixel; (4)Pixel pitch: 0.330(H)×0.330(V)mm; (5)Pixel configuration: R,G,B vertical stripe; (6)Display mode: Normally white; (7)Unit outline dimensions: 246.5(W)×179.4(H)×14.2(D)mm; (8)Mass: 600±20 g; (9)Surface treatment: Anti-glare and hard-coating haze value = 26%±5%.

Diagrams

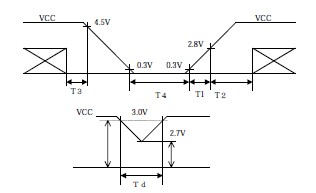

LQ104V1DG5B pin connection
