Product Summary

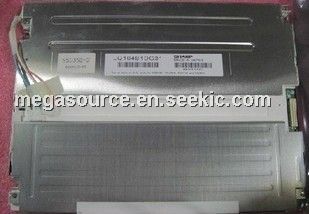

The LQ104V1DG81 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ104V1DG81 is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a white-LED backlight unit. Graphics and texts can be displayed on a 640×RGB×480dots panel with about 262,144 colors by using CMOS(Complementary MOS) and supplying +3.3V DC supply voltages for TFT-LCD panel driving and supply voltage for backlight.
Parametrics
LQ104V1DG81 absolute maximum ratings: (1)Display size: 26 (10.4inch) diagonal cm; (2)Active area: 211.2(H)×158.4(V) mm; (3)Pixel format: 640(H)×480(V) pixel (1 pixel=R+G+B dots); (4)Pixel pitch: 0.33(H)×0.33(V) mm; (5)Pixel configuration: R,G,B vertical stripe; (6)Display mode: Normally white; (7)Mass: 500g; (8)Surface treatment: Anti-glare and hard-coating 3H.
Features
LQ104V1DG81 features: (1)26 cm [10.4"] VGA format; (2)High brightness (200 cd/m2); (3)Wide viewing angle (Horizontal: 140° Vertical: 110°); (4)Built-in long life CCFT backlight (50 000 h).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ104V1DG81 |
Sharp Microelectronics |
TFT Displays & Accessories 10.4" TFT VGA 640x480 Digital |
Data Sheet |
|
|
||||||
