Product Summary

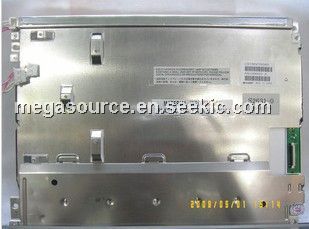

The lq104v1dg83 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The lq104v1dg83 is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a White-LED Backlight unit. Graphics and texts can be displayed on a 640×RGB×480dots panel with about 262,144 colors by using CMOS(Complementary MOS) and supplying +3.3V DC supply voltages for TFT-LCD panel driving and supply voltage for backlight.

Parametrics

lq104v1dg83 absolute maximum ratings: (1)Supply voltage Vcc Ta=25℃ VCC: -0.3　～ +4.0 V,VDD Ta=25℃ VDD: -0.3　～ +15.0 V; (2)Input voltage R0-5,G0-5,B0-5 CK,Hsync,VⅠ1 Ta=25℃ Vsync ENAB,SCAN: -0.3～VCC+0.3 V,VⅠ4 Ta=25℃ XSTABY, VBR: -0.3～+VDD V; (3)Storage temperature TSTG: -30　～ +80 ℃; (4)Operating temperature TOPA: -30　～ +80 ℃.

Diagrams

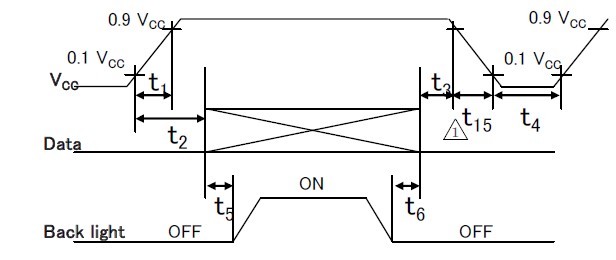

lq104v1dg83 pin connection
