Product Summary

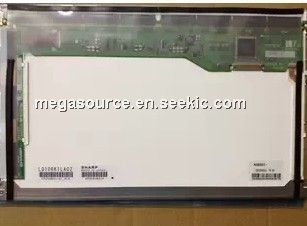

The lq106k1la02 is a color TFT-LCD module.

Parametrics

lq106k1la02 absolute maximum ratings: (1)Brightness: 250 cd/m2; (2)Contrast ratio: 300: 1; (3)Power consumption: 7.5 W; (4)Outline dimensions: (W x H x D) 290.0 x 225.0 x 13.2 mm; (5)Weight: 830 g; (6)Operating temperature: 0 to +50 ℃; (7)Storage temperature: -25 to +60℃; (8)Display size: 31 [12.1] cm; (9)Dot format (H x V): 800 x RGB x 600 dot; (10)Dot pitch (H x V): 0.1025 x 0.3075 mm; (11)Active area (H x V): 246.0 x 184.5 mm.

Features

lq106k1la02 features: (1)31 cm [12.1"] SVGA format; (2)High brightness (250 cd/m2); (3)Built-in long life CCFT backlight (50 000 h); (4)Wide viewing angle; (5)Easy replaceable lamp (CCFT) (Horizontal: 140° Vertical: 110°); (6)Power supply/voltage: 3.3 V/5.0 V.

Diagrams

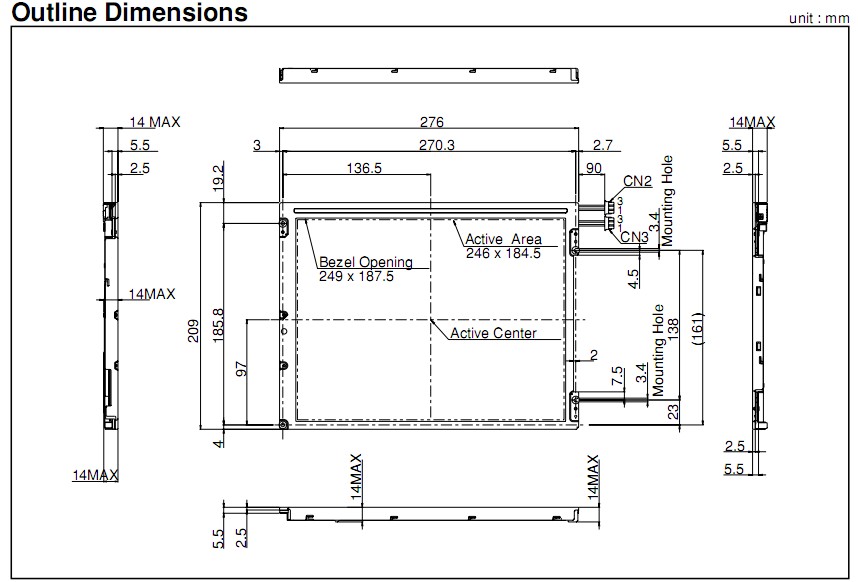

lq106k1la02 pin connection
