Product Summary
The lq10d011 is a color tft-lcd module.
Parametrics
lq10d011 absolute maximum ratings: (1)Display size 26 [10.4] cm; (2)Brightness 300 cd/m2; (3)Dot format (H x V) 640 x RGB x 480 dot; (4)Contrast ratio 100 : 1; (5)Dot pitch (H x V) 0.11 x 0.33 mm; (6)Power consumption 7.4 W; (7)Active area (H x V) 211.2 x 158.4 mm; (8)Outline dimensions (W x H x D) 265 x 195.0 x 11 mm; (9)Color 262 144; (10)Weight 635 g; (11)Input signal 6-bit Digital RGB; (12)Operating temperature 0 to +50 ℃; (13)Viewing direction 6:00; (14)Storage temperature -25 to +70 ℃.
Features
lq10d011 features: (1)26 cm [10.4"] VGA format; (2)High brightness (300 cd/m2); (3)Wide viewing angle (Horizontal: 120° Vertical: 90°).

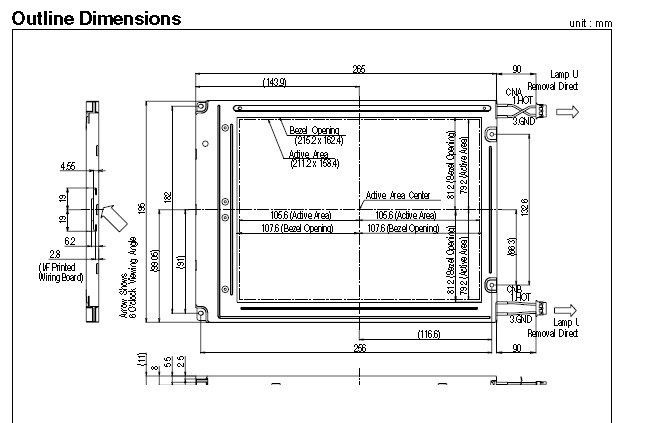

Diagrams
