Product Summary

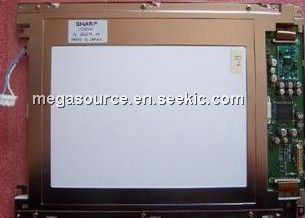

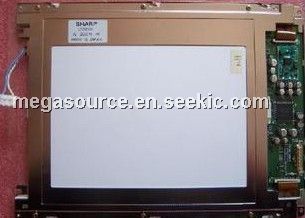

The lq10d344 is a color TFT-LCD module.

Parametrics

lq10d344 absolute maximum ratings: (1)Brightness: 200 cd/m2; (2)Contrast ratio: 300 : 1; (3)Power consumption: 4.4 W; (4)Outline dimensions (W x H x D): 246.5 x 179.4 x 10.5 mm; (5)Weight: 550 g; (6)Operating temperature: 0 to +50 °C; (7)Storage temperature: -25 to +70 °C.

Features

lq10d344 features: (1)26 cm [10.4"] VGA format; (2)High brightness (200 cd/m2); (3)Wide viewing angle (horizontal: 140° vertical: 110°); (4)Built-in long life CCFT backlight (50000 h).

Diagrams

lq10d344 pin connection
