Product Summary
The LQ10D421 is a color TFT-LCD module.
Parametrics
LQ10D421 absolute maximum ratings: (1)Display size: 26 [10.4] cm [ "]; (2)Brightness: 300 cd/m2; (3)Dot format (H x V): 640 x RGB x 480 dot; (4)Contrast ratio: 100 : 1; (5)Dot pitch (H x V): 0.11 x 0.33 mm; (6)Power consumption: 7.4 W; (7)Active area (H x V): 211.2 x 158.4 mm; (8)Outline dimensions (W x H x D): 265.0 x 195.0 x 11.0 mm; (9)Color: 262 144; (10)Weight: 635 g; (11)Input signal 6-bit digital RGB; (12)Operating temperature: 0 to +55 °C; (13)Viewing direction: 6:00; (14)Storage temperature: -25 to +70 °C; (15)Backlight type: 2CCFT(E).
Features
LQ10D421 features: (1)26 cm [10.4"] VGA format; (2)High brightness (300 cd/m2); (3)Wide viewing angle (Horizontal: 120° Vertical: 90°).

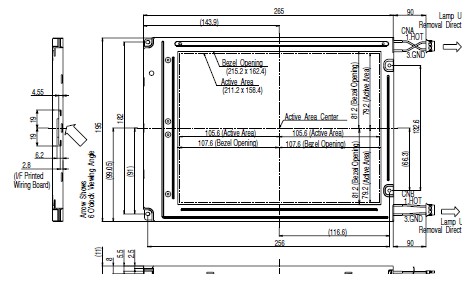

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ10D421 |
Sharp Microelectronics |
TFT Displays & Accessories 10.4" 2 x CCFT VGA |
Data Sheet |
Negotiable |
|
||||||
