Product Summary
The lq121s1lg61 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The lq121s1lg61 is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a backlight unit. Graphics and texts can be displayed on a 800 X 3 X 600 dots panel with 262,144 colors by using LVDS (Low Voltage Differential Signaling) system for interface and supplying +3.3Vor+5.0V DC supply voltage for TFT-LCD panel driving.
Parametrics
lq121s1lg61 absolute maximum ratings: (1)+3.3V / +5.0V supply voltage Vcc Ta=25°C Vcc: 0 to + 6.0 V; (2)Input voltage VI1 RXINi-/+(i= 0,1,2): -0.3 to Vcc+0.3 V Vcc<3.0V; (3)RXCLK IN-/+: -0.3 to 3.3V V 3.0V≦Vcc; (4)VI2 Ta=25oC R/L , U/D: -0.3 to Vcc+0.3 V; (5)Lamp input voltage VHIGH: 1800 Vrms; (6)Storage temperature Tstg: -30 to +80°C; (7)Operating temperature Topa Panel surface: -30 to +80°C.
Features
lq121s1lg61 features: (1)Lamp current range IL: 3.0 to 6.5 mArms; (2)Lamp power consumption PL: 3.5 W; (3)Lamp frequency FL: 40 to 70 kHz.

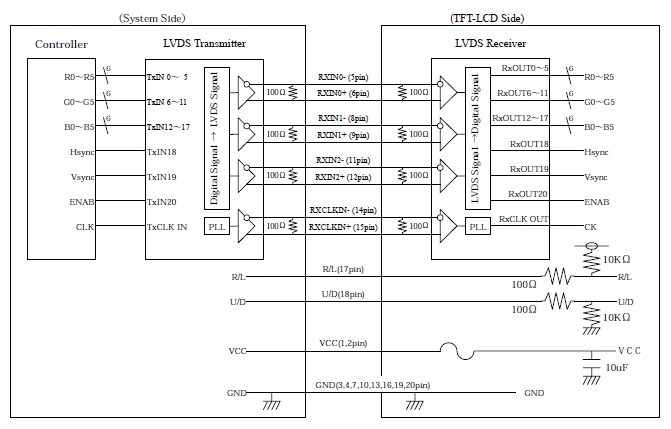

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ121S1LG61 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" SVGA STRONG 2 |
Data Sheet |
Negotiable |
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
LQ121K1LG11 |
Sharp Microelectronics |
TFT Displays & Accessories |
Data Sheet |
Negotiable |
|
||||||||
|
LQ121K1LG52 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" WXGA 1280x800 LED Backlight |
Data Sheet |
|
|
||||||||
|
LQ121S1DC71 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" TFT SVGA 800x600 800nit |
Data Sheet |
|
|
||||||||
|
LQ121S1DG11 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
LQ121S1DG21 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
LQ121S1DG31 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
