Product Summary
The ls015a8gb91 is a 300 mA output current and low dropout voltage regulator. the ta48lsf series consists of small-surface mount type low-dropout regulators with an output current of 300ma (maximum) and an on/off control switch. control by an en (on/off) terminal enables the regulator to be operated only when required (output on).
Parametrics
ls015a8gb91 absolute maximum ratings: (1)input voltage vin: 14 v; (2)en input voltage ven: 14 v; (3)output current iout: 300 ma; (4)operating junction temperature tj(opr): -40~150 °c; (5)junction temperature tj: 150 °c; (6)storage temperature tstg: −55 to150 °c; (7)power dissipation（note 5） ta = 25°c pd: 1.2 w.
Features
ls015a8gb91 features: (1)built-in on/off control function (active high); (2)STK1maximum output curren : 300 ma; (3)STK1low output voltage : 1.5 / 1.8 / 2.5 / 3.3 / 5.0 v; (4)STK1output voltage accuracy : vout ± 2.5 % (@tj = 25°c); (5)STK1low quiescent current : 1 ma (typ.)(@iout = 0 a); (6)STK1low standby current (output off mode): 0.2μa (typ.); (7)STK1low-dropout voltage : 0.5 v (max)(@vout => 1.8v, iout = 150m a); (8)STK1protection function : over current protection / thermal shutdown; (9)STK1package type : ps-8.

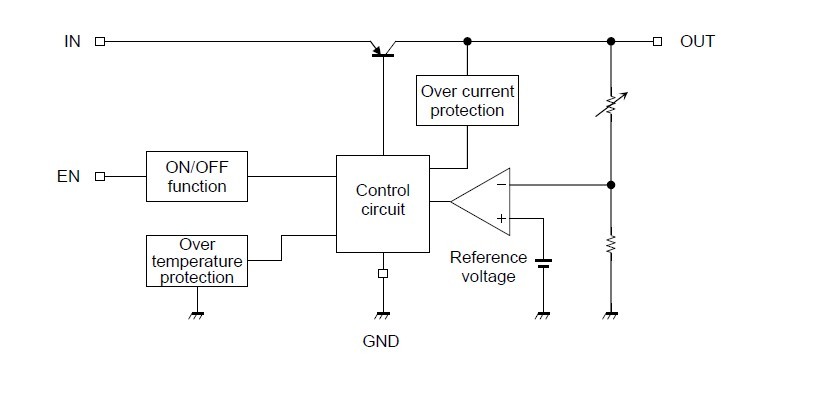

Diagrams
