Product Summary
The ltm10c210 is a 26cm colour TFT-LCD module (10.4 type) .
Parametrics
ltm10c210 absolute maximum ratings: (1) Supply Voltage VDD: -0.3 to 7V, VFL: 0 to 2kV; (3) FL Driving Frequency (fFL) : 0 to 100kHz; (4) Input Signal Voltage (VIN) : -0.3 to VDD +0.3V; (5) Operating Temperature: 0 to 50°C; (6) Storage Temperature: -20 to 60°C; (7) Storage Humidity (Max. wet bulb temperature=39°C) : 10 to 90% (RH) .
Features
ltm10c210 features: (1) 10.4 inch VGA color display with High Luminance; (2) Wide Viewing Angle (Vertical:90, Horizontal:110) ; (3) Built in Long Life Lamps(50,000 h) ; (4) Full mechanical compatible with LTM10C209A, LTM10C209H(10.4 inch VGA), LTM10C273 (10.4 inch SVGA) .

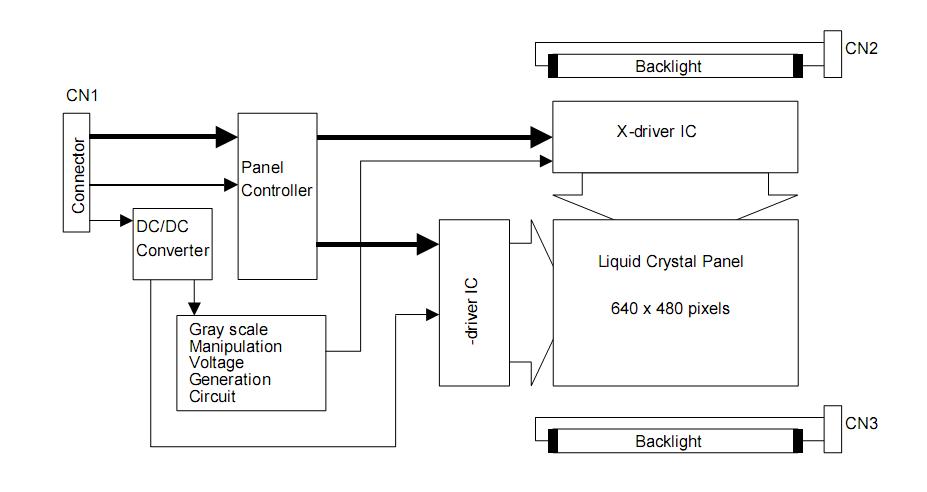

Diagrams
