Product Summary

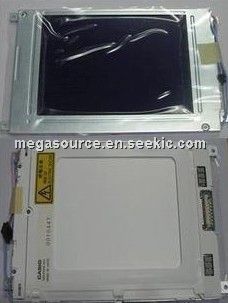

The ltm10c345 is a 26cm colour TFT-LCD module.
Parametrics
ltm10c345 absolute maximum ratings: (1)Supply voltage (VDD): -0.3 to 4.0 V; (VFL): 2.0 kV(rms); (2)FL driving frequency : (fFL): 100 kHz; (3)Input signal voltage (VIN): -0.3 to VDD+0.3 V; (4)Operating temperature: 0 to 50 °C; (5)Storage temperature: -20 to 60 °C; (6)Storage humidity: 10 to 90 %(RH).
Features
ltm10c345 features: (1)10.4”SVGA display size for notebook PC; (2)LVDS interface system; (3)Slim(5.2mmMAX).

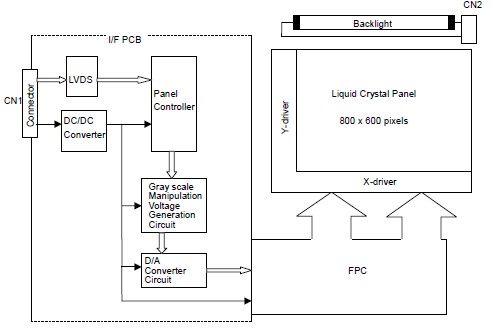

Diagrams
