Product Summary

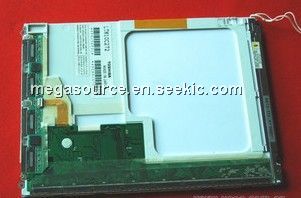

The ltm10c348s is a 26cm colour TFT-LCD module.

Parametrics

ltm10c348s absolute maximum ratings: (1)Supply voltage (VDD): -0.3 to 4.0 V, (VFL): 2.0 kV(rms); (2)FL driving frequency (fFL): 100 kHz; (3)Input signal voltage (VIN): -0.3 to VDD+0.3 V; (4)Operating temperature: 0 to 50 °C; (5)Storage temperature: -20 to 60 °C; (6)Storage humidity: 10 to 90 %(RH).

Features

ltm10c348s features: (1)10.4”SVGA display size for notebook PC; (2)LVDS interface system; (3)Slim(5.2mmMAX).

Diagrams

ltm10c348s pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LTM10C348S
LTM10C348S
Other

Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LTM10C209H
LTM10C209H
Other

Data Sheet
Negotiable
LTM10C306L
LTM10C306L
Other

Data Sheet
Negotiable
LTM10C348S
LTM10C348S
Other

Data Sheet
Negotiable
