Product Summary
The nl6448ac33-01 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) module comprising amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight. The nl6448ac33-01 contains 640 × 480 pixels and can display 4096 colors simultaneously. By utilizing one lamp/edge-light type backlight, a very thin profile design and low power consumption have been achieved. The applications of the nl6448ac33-01 include: Notebook personal computer (PC), word processor, Display terminals for control system, New media, Control board for NC machine, Monitors for process controller.
Parametrics
nl6448ac33-01 absolute maximum ratings: (1)Supply voltage VDD: 0 to 21.0 V; VCC: –0.3 to 6.5 V; (2)Input voltage VI: –0.3 to VCC +0.3 V; (3)Storage temp. TST: –20 to 60 ℃; (4)Operating temp. TOP: 0 to 50 ℃; (5)Humidity: 95 % relative humidity at Ta = 40℃; 85 % relative humidity at Ta = 50℃.
Features
nl6448ac33-01 features: (1)High contrast ratio, wide color gamut; (2)High-speed response; (3)Incorporated edge light type backlight and Inverter; (4)Data enable function.

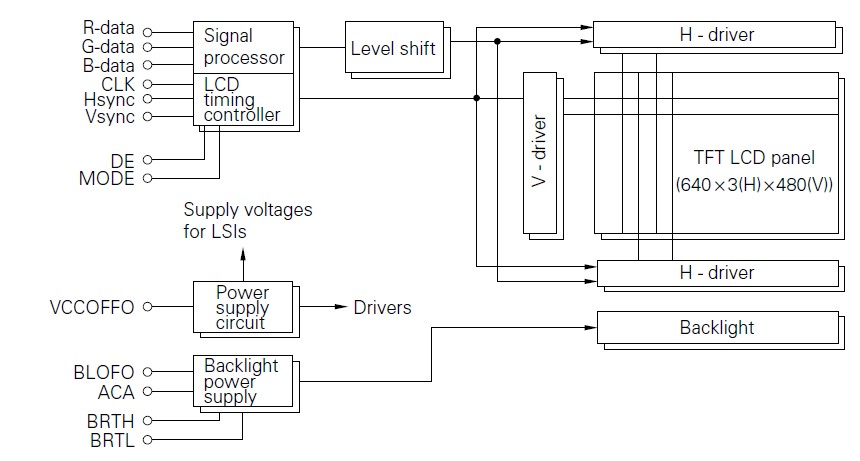

Diagrams
