Product Summary
The NL6448AC33-09 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) module comprising amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight. The NL6448AC33-09has a built-in backlight. The backlight includes long-life-lamps and the lamps are replaceable with a holder. The 26 cm diagonal display area contains 800 600 pixels and can display 262144 color simultaneously. The NL6448AC33-09 is suitable for industrial application use, because the viewing angle is wide and the luminance is high. Also, the viewing direction is selectable either upper or lower side by changing scan direction. Applications are (1)Display terminals for control system; (2)Monitors for process controller; (3)Industrial PC.
Parametrics
NL6448AC33-09 absolute maximum ratings: (1)Supply voltage VCC: –0.3 to 6.5 V; (2)Input voltage VI: –0.3 to 6.5 V; (3)Storage temp TST: –20 to 60 °C; (4)Operating temp TOP: 0 to 50 °C; (5)Humidity RH: ≤ 95 % relative humidity Ta ≤ 40 °C; ≤ 85 % relative humidity 40 < Ta ≤ 50 °C; Absolute humidity shall not exceed Ta = 50 °C, 85 % relative humidity level Ta > 50 °C.
Features
NL6448AC33-09 features: (1)Reverse function (user set up); (2)6-bit digital RGB signals; (3)3.3 V operation (5.0 V available); (4)Data enable function (DE/Fixed mode select: user set up); (5)Smooth polarizer surface (No antiglare treatment); (6)Incorporated edge type backlight (Two lamps, with inverter, bright/dark selectable); (7)Backlight tube replaceable.

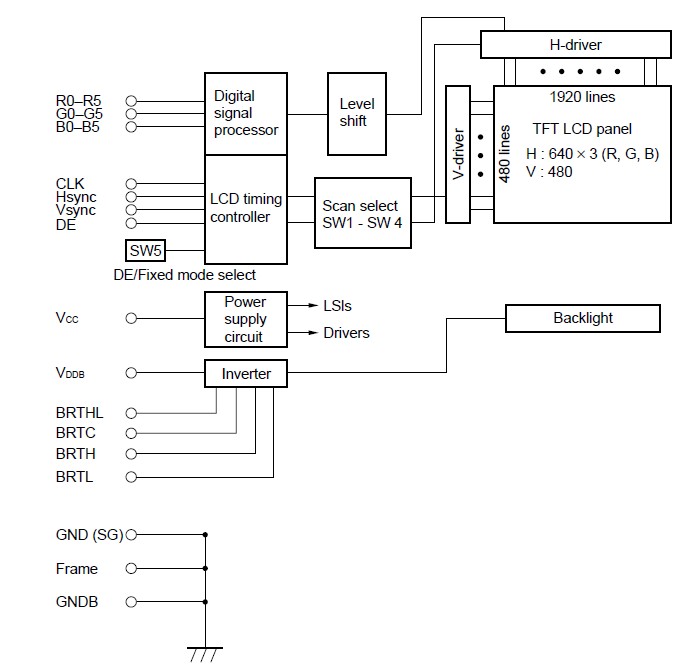

Diagrams
