Product Summary

The pd104vt3h2 is a color TFT LCD module. It applies to OA product, car TV which requires high quality flat panel display. Prime view assume no responsibility for any damage resulting from the use of the device which does not comply with the instructions and the precautions in these specification sheet.



Parametrics

pd104vt3h2 absolute maximum ratings: (1)Supply Voltage Vcc: -0.3 to +4.0 V; (2)Input Signal Voltage VIN: -0.3 to Vcc+0.3 V; (3)Backlight Driving Voltage VL: 2000 V; (4)Backlight Driving Frequency FL: 0 to 100 KHz; (5)Storage Temperature TST: -10 to +70 ℃; (6)Operating Temperature TOP: -10 to +60°C.

Features

pd104vt3h2 features: (1)Support the DENB mode; (2)Image Reversion : Up/Down and Left/Right; (3)Amorphous silicon TFT LCD panel with back-light unit; (4)Pixel in stripe configuration; (5)Slim and compact, designed for O/A application; (6)Display Colors：262,144 colors; (7)Optimum Viewing Direction：6 o’clock; (8)+3.3V DC supply voltage for TFT LCD panel driving; (9)Backlight driving DC/AC inverter not included in this module; (10) TTL transmission interface.

Diagrams

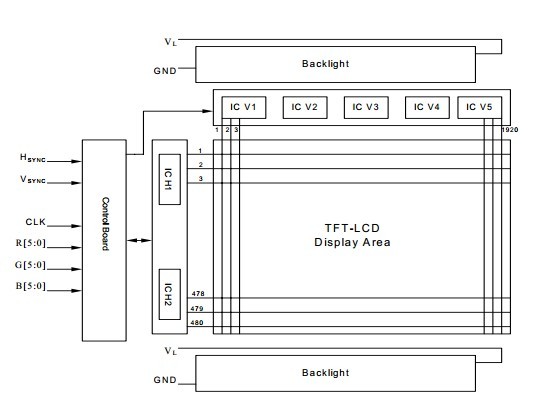

pd104vt3h2 pin connection
