Product Summary

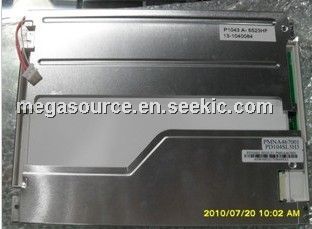

PD104VT5 is a module which applies to OA product, car TV(must use Analog to Digital drive board), which require high quality flat panel display.

Parametrics

PD104VT5 absolute maximum ratings: (1)Supply Voltage: -0.3 to +4.0V; (2)Input Signal Voltage: -0.3 to Vcc+0.3 V; (3)Backlight Driving Voltage: 2000 V; (4)Backlight Driving Frequency: 0 to 100 KHz.

Features

PD104VT5 features: (1)Support the DENB mode; (2)Image Reversal: Up/Down and Left/Right; (3)Amorphous silicon TFT LCD panel with back-light unit; (4)Pixel in stripe configuration; (5)Slim and compact, designed for O/A application; (6)Display Colors: 262,144 colors; (7)+3.3V DC supply voltage for TFT LCD panel driving; (8)Backlight driving DC/AC inverter not included in this module; (9)TTL transmission interface.

Diagrams

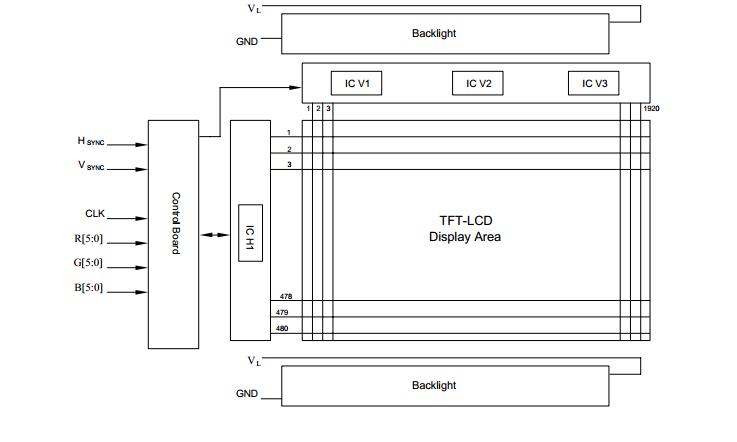

PD104VT5 Block Diagram
