Product Summary

The pm102wx1 is a color TFT LCD module. Applications of the pm102wx1 include: OA product, car TV (must use Analog to Digital driving board) . The pm102wx1 requires high quality flat panel display. If you use pm102wx1, Prime View advises your systems use PVI timing controller IC (PVI-2002A) which will generate proper timing signals to control the pm102wx1.

Parametrics

pm102wx1 absolute maximum ratings: (1) Supply Voltage VDD1: -0.3 to 5V,Vcc: -0.5 to 3V, VDD2: -0.5 to 12V, VGG: -0.3 to 40V, VGG-VEE: 40V, VEE: -20 to 0.3V; (2) Digital Input VIN: -0.5 to Vcc +0.5V; (3) Backlight Driving Voltage VL: 2000V; (4) Backlight Driving Frequency FL: 0 to 100kHz; (5) Storage Temperature TSL: -30 to 80°C; (6) Operating Temperature Top: -20 to 80°C.

Features

pm102wx1 features: (1) Wide VGA (800*480 pixels) resolution; (2) Amorphous silicon TFT LCD panel with back-light unit; (3) Pixel in stripe configuration; (4) Thin and light weight; (5) Display Colors 262,144 colors; (6) Optimum Viewing Direction; (7) TTL interface; (8) Wide viewing angle.

Diagrams

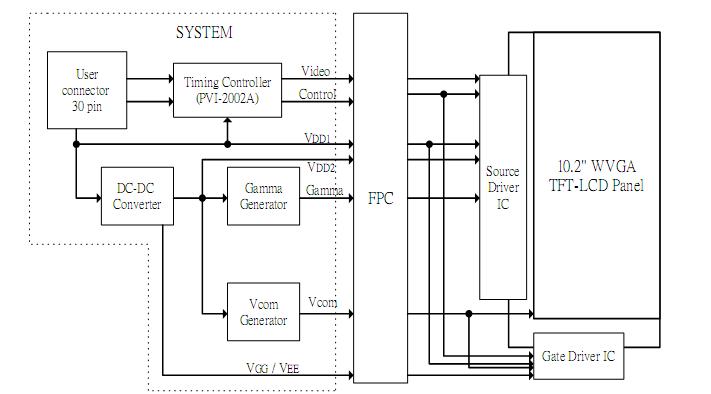

pm102wx1 block diagram
