LM1267NA

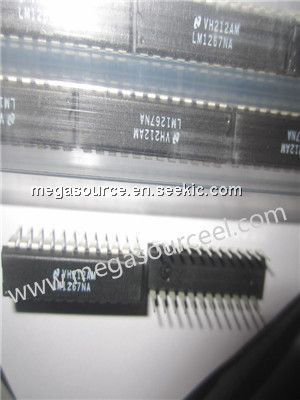

LM1267NA, DIP, 150 MHz I2C compatible rgb video amplifier system, 28 mA, 6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.17 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	1.17 / Piece
2 ~ 20 :	0.90 / Piece

PartNumber:: LM1267NA

Brand:: Texas Instruments - TI | D/C: 02+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-02

From Other Seller

Part Number:LM1267NA
US $0.90 - 1.17
Quantity:

piece

Product Summary

The LM1267NA is an integrated CMOS CRT pre-amp. The IC is I2C compatible, and allows control of all the parameters necessary to directly setup and adjust the gain and contrast in the CRT display. Brightness and bias can be controlled through the DAC outputs, and is well matched to the LM2479 and LM2480 integrated bias clamp IC. The LM1267NA is designed to work in cooperation with the LM246X high gain driver family. Black level clamping of the signal is carried out directly on the AC coupled input signal into the high impedance preamplifier input, thus eliminating the need for additional black level clamp capacitors. The IC is packaged in an industry standard 24-lead DIP molded plastic package. The LM1267NA can be applied in low end 15 and 17 bus controlled monitors with OSD, 1024 X 768 displays up to 85 Hz requiring OSD capability, and very low cost system with LM246X drive.

Parametrics

LM1267NA absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Peak Video Output Source Current: 28 mA; (3)Power Dissipation: 2.4W; (4)Thermal Resistance to Ambient: 51°C/W; (5)Thermal Resistance to Case: 32°C/W; (6)Junction Temperature: 150°C; (7)ESD Susceptibility: 3.5 kV; (8)Storage Temperature: 65°C to +150°C.
