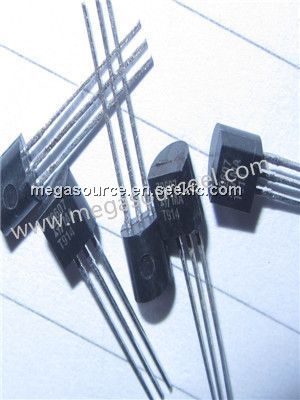

Product Summary

The Z00607MA is a 0.8A triac. the z00607ma is suitable for low power ac switching applications, such as fan speed, small light controllers... thanks to low gate triggering current, it can be directly driven by microcontrollers.



Parametrics

Z00607MA absolute maximum ratings: (1)it(rms)rms on-state current (full sine wave)tl = 50°c: 0.8 a; (2)itsm non repetitive surge peak on-state current (full cycle, tj initial = 25°c)f = 50 hz t = 20 ms: 9 a; f = 60 hz t = 16.7 ms: 9.5 a; (3)i²t i²t value for fusing tp = 10 ms: 0.45 a²s; (4)di/dt critical rate of rise of on-state current ig = 2 x igt , tr ≤ 100 ns f = 120 hz tj = 110°c: 20 a/μs; (5)igm peak gate current tp = 20 μs tj = 110°c: 1 a; (6)pg(av)average gate power dissipation tj = 110°c: 0.1 w; (7)tstg storage junction temperature range : - 40 to + 150 °c.

Features

Z00607MA features: (1)it(rms): 0.8 a; (2)vdrm/vrrm: 600 v; (3)igt (q1): 5 ma.

Diagrams

Z00607MA pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
Z00607MA
Z00607MA
Other

Data Sheet
Negotiable
Z00607MA 1BA2
Z00607MA 1BA2
STMicroelectronics
Triacs 0.8 Amp 600 Volt
Data Sheet
0-1: $0.20
1-10: $0.17
10-100: $0.14
100-250: $0.12
Z00607MA 5BL2
Z00607MA 5BL2
STMicroelectronics
Triacs 0.8 Amp 600 Volt
Data Sheet
0-1: $0.37
1-10: $0.27
10-100: $0.23
100-250: $0.20
Z00607MA 2BL2
Z00607MA 2BL2
STMicroelectronics
Triacs 0.8 Amp 600 Volt
Data Sheet
0-1950: $0.16
1950-2000: $0.14
2000-5000: $0.14
5000-10000: $0.13
Z00607MA,412
Z00607MA,412
NXP Semiconductors
Triacs Optocoupl Triac AC- OUT 600VDRM 3Pin SPT
Data Sheet
Negotiable
