Product Summary
The ha7210ip is a very low power crystal-controlled oscillator that can be externally programmed to operate between 10kHz and 10MHz. For normal operation the ha7210ip requires only the addition of a crystal. Applications of the ha7210ip include: Battery Powered Circuits, Remote Metering, Embedded Microprocessors, Palm Top/Notebook PC and Related Literature.
Parametrics
ha7210ip absolute maximum ratings: (1) Supply Voltage: 10V; (2) Voltage (Any Pin) : VSS -0.3 to VDD +0.3V; (3) ESD Rating Human Body Model (Per MIL-STD-883 Method 3015.7) : 4000V; (4) Maximum Junction Temperature (Plastic Package) : 150°C; (5) Maximum Storage Temperature Range: -65 to 150°C; (6) Maximum Lead Temperature (Soldering 10s) : 300°C.
Features
ha7210ip features: (1) Single Supply Operation at 32kHz: 2 to 7V; (2) Operating Frequency Range: 10kHz to 10MHz; (3) Supply Current at 32kHz: 5μA; (4) Supply Current at 1MHz; 130μA; (5) Drives 2 CMOS Loads; (6) Only Requires an External Crystal for Operation.

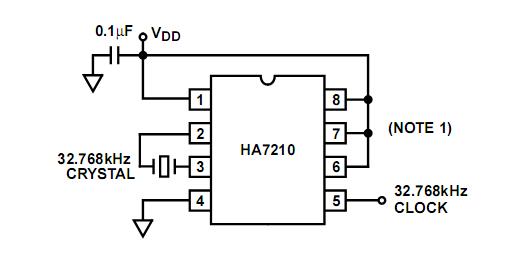

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HA7210IP |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
HA7210 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HA7210IP |
Other |
|
Data Sheet |
Negotiable |
|
||||
