Product Summary

The BSP135 is a SIPMOS Small-Signal-Transistor.

Parametrics

BSP135 absolute maximum ratings: (1)Continuous drain current: 0.12 A at TA=25 ℃, 0.10 A at TA=70 ℃; (2)Pulsed drain current: 0.48 A at TA=25 ℃; (3)Reverse diode dv /dt: 6 kV/μs at ID=0.12 A, VDS=20 V, di /dt =200 A/μs, Tj,max=150 ℃; (4)Gate source voltage: ±20 V; (5)ESD sensitivity (HBM) as per MIL-STD 883: Class 1; (6)Power dissipation: 1.8 W at TA=25 ℃; (7)Operating and storage temperature: -55 to 150 ℃; (8)IEC climatic category; DIN IEC 68-1: 55/150/56.

Features

BSP135 features: (1)N-channel; (2)Depletion mode; (3)dv /dt rated.

Diagrams

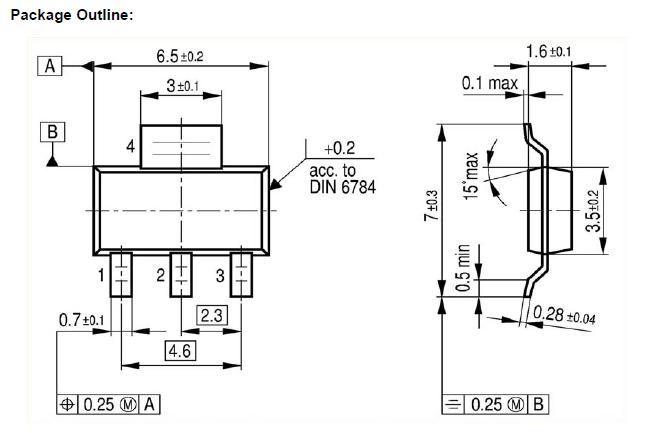

BSP135 package outline

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSP135
BSP135
Other

Data Sheet
Negotiable
BSP135 E6327
BSP135 E6327

MOSFET N-CH 600V 120MA SOT-223
Data Sheet
Negotiable
BSP135 E6906
BSP135 E6906

MOSFET N-CH 600V 120MA SOT-223
Data Sheet
Negotiable

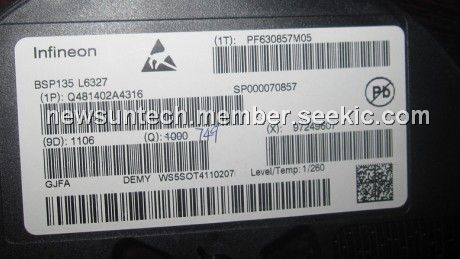

BSP135 L6327
BSP135 L6327
Infineon Technologies
MOSFET SIPMOS SM-Signal Transistor 600V .02A
Data Sheet
0-1: $0.56
1-10: $0.50
10-100: $0.43
100-250: $0.34
BSP135 L6433
BSP135 L6433
Infineon Technologies
MOSFET SIPMOS SM-Signal Transistor 600V .02A
Data Sheet
0-1: $0.51
1-10: $0.44
10-100: $0.35
100-500: $0.32
BSP135 L6906
BSP135 L6906
Infineon Technologies
MOSFET SIPMOS SM-Signal Transistor 600V .02A
Data Sheet
0-1: $1.05
1-10: $0.92
10-100: $0.81
100-500: $0.65
500-1000: $0.48
