Product Summary
The FDC6331L is an intergrated load switch. The FDC6331L is particularly suited for compact power management in portable electronic equipment where 2.5V to 8V input and 2.8A output current capability are needed. Applications of the FDC6331L include: load switch and power management.
Parametrics
FDC6331L absolute maximum ratings: (1) Maximum Input Voltage VIN: ±8V; (2) High level ON/OFF voltage range VCN/OFF: -0.5 to 8V; (3) Load Current: -2.8A (Continuous) , -9A (Pulsed) ; (4) Maximum Power Dissipation PD: 0.7W; (5) Operating and Storage Junction Temperature Range Tj, TSTG: -55 to +150°C.
Features
FDC6331L features: (1) -2.8A, -8V, RDS (ON) =55mΩ@VGS=-4.5V, RDS (ON) =70mΩ@VGS=-2.5V, RDS (ON) =100mΩ@VGS=-1.8V; (2) Control MOSFET (Q1) includes Zener protection for ESD ruggedness (>6KV Human body model) ; (3) High performance trench technology for extremely low RDS (ON) .
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

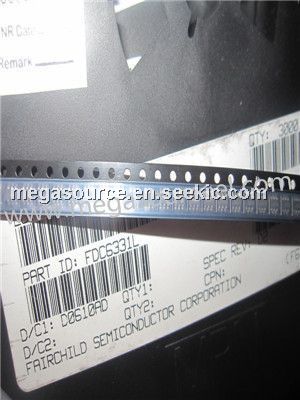

 FDC6331L |
Fairchild Semiconductor |
Power Driver ICs Integ. Load Switch |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
FDC6000NZ |
Fairchild Semiconductor |
MOSFET Dual N-Channel 2.5V Spec PowerTrench |
Data Sheet |
Negotiable |
|
||||||||||||
|
FDC6000NZ_F077 |
Fairchild Semiconductor |
MOSFET 2.5V DUAL N-CH |
Data Sheet |
Negotiable |
|
||||||||||||
|
FDC6020C |
Fairchild Semiconductor |
MOSFET Complementary PowerTrench |
Data Sheet |
Negotiable |
|
||||||||||||
|
FDC6020C_F077 |
Fairchild Semiconductor |
MOSFET Complementary PwrTrh |
Data Sheet |
Negotiable |
|
||||||||||||
|
FDC602P |
Fairchild Semiconductor |
MOSFET P-Ch PowerTrench Specified 2.5V |
Data Sheet |
|
|
||||||||||||
|
FDC602P_F095 |
Fairchild Semiconductor |
MOSFET -20V -5.5A P-CH POWERTRENCH |
Data Sheet |
Negotiable |
|
||||||||||||
