PXAG49KBBD

16-bit, single-chip microcontroller, PLCC44, 15 mA, 64k bytes, PXAG49KBBD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.44~7.89 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.44~7.89

PartNumber:: PXAG49KBBD

Brand:: Philips Electronics India Limited - PHILIPS | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hellen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-19

From Other Seller

Part Number:PXAG49KBBD
US $2.44 - 7.89
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

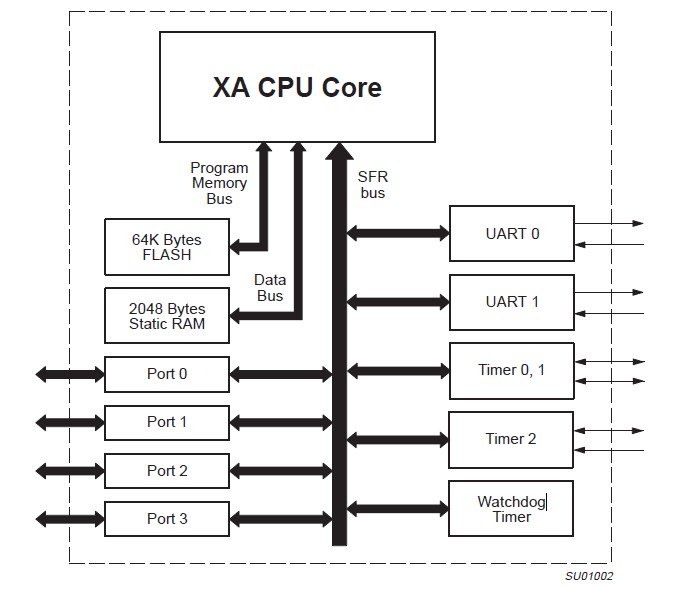

The PXAG49KBBD is a high performance 16-bit single-chip microcontroller. The PXAG49KBBD contains 64k bytes of Flash program memory, and provides three general purpose timers/counters, a watchdog timer, dual UARTs, and four general purpose I/O ports with programmable output configurations. A default serial loader program of the PXAG49KBBD in the Boot ROM allows In-System Programming (ISP) of the Flash memory without the need for a loader in the Flash code. User programs may erase and reprogram the Flash memory at will through the use of standard routines contained in the Boot ROM (In-Application Programming).

Parametrics

PXAG49KBBD absolute maximum ratings: (1)Operating temperature under bias: –55 to +125 ℃; (2)Storage temperature range: –65 to +150 ℃; (3)Voltage on EA/VPP pin to VSS: 0 to +13.0 V; (4)Voltage on any other pin to VSS: –0.5 to VDD+0.5V V; (5)Maximum IOL per I/O pin: 15 mA; (6)Power dissipation (based on package heat transfer limitations, not device power consumption): 1.5 W.

Features

PXAG49KBBD features: (1)4.5V to 5.5V operation. For low voltage operation, consult factory.; (2)64K bytes of on-chip Flash program memory with In-System Programming capability; (3)Five Flash blocks = two 8k byte blocks and three 16k byte blocks; (4)Nearly identical to XA-G3, except for double the program and RAM memories; (5)Watchdog timer; (6)Two enhanced UARTs with independent baud rates; (7)Seven software interrupts.
