Product Summary

The blf246 is a 30 W LDMOS power transistor for base station applications at frequencies from 1800 to 2200 MHz. The applicaitons of the device include RF power amplifiers for GSM, EDGE, CDMA and W-CDMA base stations and multicarrier applications in the 1800 to 2200 MHz frequency range and Broadcast drivers

Parametrics

blf246 absolute maximum ratings: (1)VDS, drain-source voltage: 65 V; (2)VGS, gate-source voltage:±15 V; (3)ID, drain current (DC): 4.5 A; (4)Tstg, storage temperature: -65 to +150℃; (5)Tj, junction temperature: 200℃

Features

blf246 features: (1)Typical 2-tone performance at a supply voltage of 26 V and IDQ of 500 mA: Output power = 30 W (PEP); Gain = 12.5 dB; Efficiency = 32%; dim = -26 dBc; (2)Easy power control; (3)Excellent ruggedness; (4)High power gain; (5)Excellent thermal stability; (6)Designed for broadband operation (1800 to 2200 MHz); (7)No internal matching for broadband operation.

Diagrams

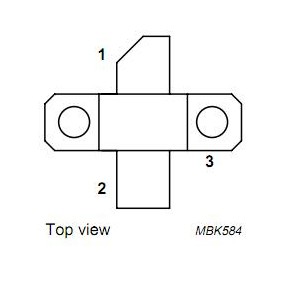

blf246 block diagram
