Product Summary

The mrf8s19260hs is an N-Channel Enhancement-Mode Lateral MOSFET which is designed for CDMA and multicarrier base station applications with frequencies from 1805 to 1880MHz. The mrf8s19260hs can be used in Class AB and Class C for all typical cellular base station modulation formats.

Parametrics

mrf8s19260hs absolute maximum ratings: (1)Drain-Source Voltage VDSS: -0.5 to +65 Vdc; (2)Gate-Source Voltage VGS: -6.0 to +10 Vdc; (3)Operating Voltage VDD: 32 to +0 Vdc; (4)Storage Temperature Range Tstg: - 65 to +150 ℃; (5)Case Operating Temperature TC: 150 ℃; (6)Operating Junction Temperature (1,2) TJ: 225 ℃.

Features

mrf8s19260hs features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters and Common Source S-Parameters; (2)Internally Matched for Ease of Use; (3)Integrated ESD Protection; (4)Greater Negative Gate-Source Voltage Range for Improved Class C Operation; (5)Designed for Digital Predistortion Error Correction Systems; (6)Optimized for Doherty Applications.

Diagrams

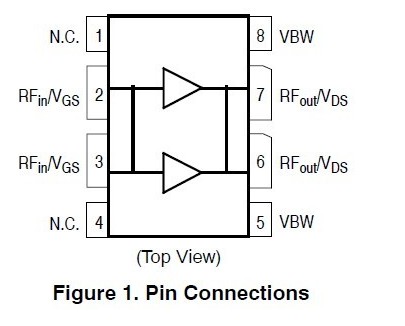

mrf8s19260hs block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF8S19260HSR5
MRF8S19260HSR5
Freescale Semiconductor
Transistors RF MOSFET Power HV8 1.9GHZ 260W NI1230S8
Data Sheet
0-35: $64.96
35-50: $59.75
MRF8S19260HSR6
MRF8S19260HSR6
Freescale Semiconductor
Transistors RF MOSFET Power 65V N-CH 1960MHz
Data Sheet
0-71: $95.62
71-100: $59.76
100-150: $59.76
