Product Summary

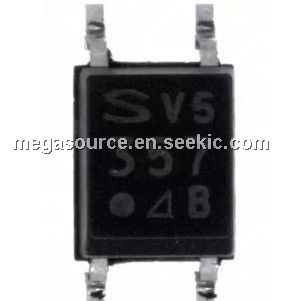

The PC357N2J000F is a Mini-flat Package, General Purpose Photocoupler. It contains an IRED optically coupled to a phototransistor. The PC357N2J000F is packaged in a 4-pin Mini-flat package. Input-output isolation voltage(rms) is 3.75kV.Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA. The applications of the PC357N2J000F are Hybrid substrates that require high density mounting and Programmable controllers.
Parametrics
PC357N2J000F absolute maximum ratings: (1)Input, Forward current: 50mA; Peak forward current: 1A; Power dissipation: 70mW; (2)Output, Collector-emitter voltage: 6 V; Emitter-collector voltage: 6 V; Collector current: 50mA; Collector power dissipation: 150 mW; (3)Total power dissipation: 170mW; (4)Isolation voltage, Viso(rms): 3.75kV; (5)Operating temperature: -30 to 100°C; (6)Storage temperature: -40 to 125°C; (7)Soldering temperature: 260°C.
Features
PC357N2J000F features: (1)4-pin Mini-flat package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)High collector-emitter voltage (VCEO : 80V); (4)Current transfer ratio (CTR) : MIN. 50% at IF=5mA, VCE=5V; (5)Several CTR ranks available; (6)High isolation voltage between input and output (Viso(rms) : 3.75kV); (7)Lead-free and RoHS directive compliant.

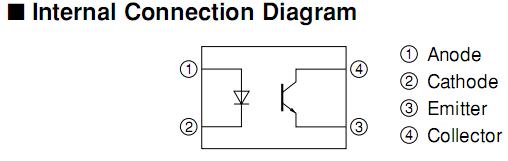

Diagrams
