Product Summary
The BHC-XL1M2HY Chip LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. The applications of the BHC-XL1M2HY are Backlighting in dashboard and switch, indicator and backlighting in telephone and fax, Flat backlight for LCD, switch and symbol, General use.
Parametrics
BHC-XL1M2HY absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25mA; (3)Operating Temperature Topr: -40 ~ +85 ℃; (4)Storage Temperature Tstg: -40~ +90 ℃; (5)Electrostatic Discharge(HBM)ESD: 150 V; (6)Power Dissipation Pd: 95 mW; (7)Peak Forward Current (Duty 1/10 @1KHz)IF: 100 mA.
Features
BHC-XL1M2HY features: (1)Package in 8mm tape on 7〞diameter reel; (2)Compatible with automatic placement equipment; (3)Compatible with infrared and vapor phase reflow solder process; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain within RoHS compliant version.

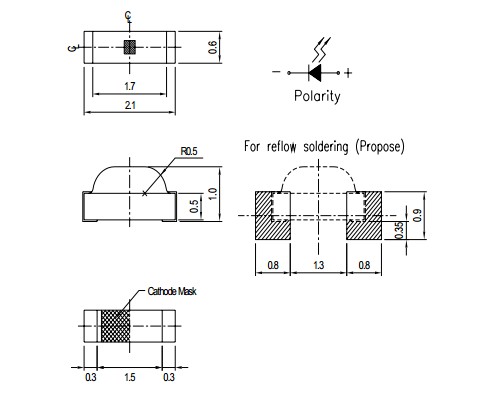

Diagrams
