Product Summary
The EHP-AX08EL/LM21H-P01 is a High Power LED. The applications of it are Design and effect illumination Interior automotive lighting (e.g. dashboard backlighting), Room lighting (e.g. luminaries, spotlights), Reading light (aircraft, car, bus), Signal and symbol luminaries, Marker lights (e.g. steps, exit ways, etc.), Architectural illumination.
Parametrics
EHP-AX08EL/LM21H-P01 absolute maximum ratings: (1)DC Operating Current: 400 mA; (2)Pulsed Forward Current(1): 500 mA; (3)ESD Sensitivity: 2000 V; (4)Junction Temperature: 125 °C; (5)Operating Temperature: -40 ~ +85 °C; (6)Storage Temperature: -40 ~ +100 °C; (7)Power Dissipation: 1.0 W; (8)Junction To Heat-Sink Thermal Resistance: 15 °C /W.
Features
EHP-AX08EL/LM21H-P01 features: (1)Feature of the device: Small package with high efficiency; (2)Typical color temperature: 3050 K; (3)Typical view angle: 150°; (4)Typical light flux output: 85 lm @ 350mA; (5)ESD protection; (6)Soldering methods: SMT; (7)Grouping parameter: Brightness, Forward Voltage and Chromaticity; (8)Optical efficiency: 68 lm/W; (9)Moisture Sensitivity Level: 3; (10)Color rendering Index: 75(typ.); (11)Thermal resistance.

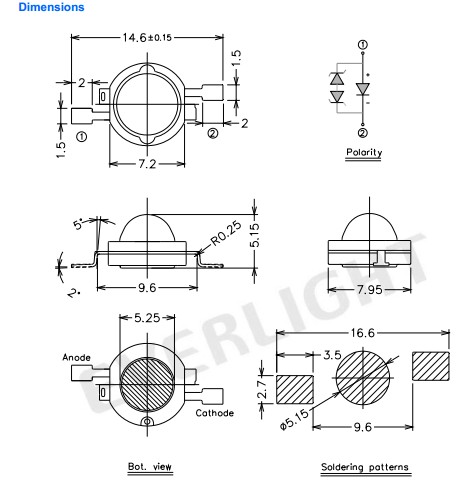

Diagrams
