Product Summary

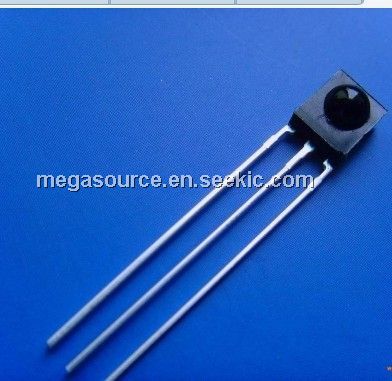

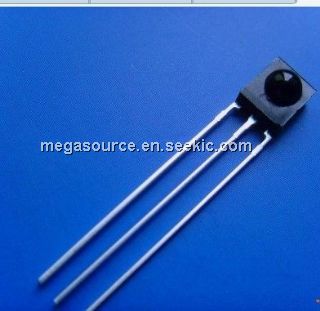

The IRM3638T is a miniaturized receiver for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The IRM3638T is the standard IR remote control receiver series, supporting all major transmission codes. The applications of the IRM3638T include: (1)Light detecting portion of remote control; (2)AV instruments such as Audio, TV, VCR, CD, MD, etc; (3)Home appliances such as Air-conditioner, Fan , etc; (4)The other equipments with wireless remote control; (5)CATV set top boxes; (6)Multi-media Equipment.
Parametrics
IRM3638T absolute maximum ratings: (1)Supply Voltage Vcc: 0~6 V; (2)Operating Temperature Topr: -25 ~ +80 ℃; (3)Storage Temperature Tstg: -40 ~ +85 ℃; (4)Soldering Temperature Tsol: 260 ℃.
Features
IRM3638T features: (1)Photo detector and preamplifier in one package; (2)Internal filter for PCM frequency; (3)Improved inner shielding against electrical fielddisturbance; (4)TTL and CMOS compatibility; (5)Low power consumption; (6)Improved immunity against ambient light; (7)Suitable burst length ≧ 10 cycles/burst; (8)Pb free; (9)BiCMOS manufacture IC; ESD HBM>4000V; MM>250V; (10)The product itself will remain within RoHS compliant version.

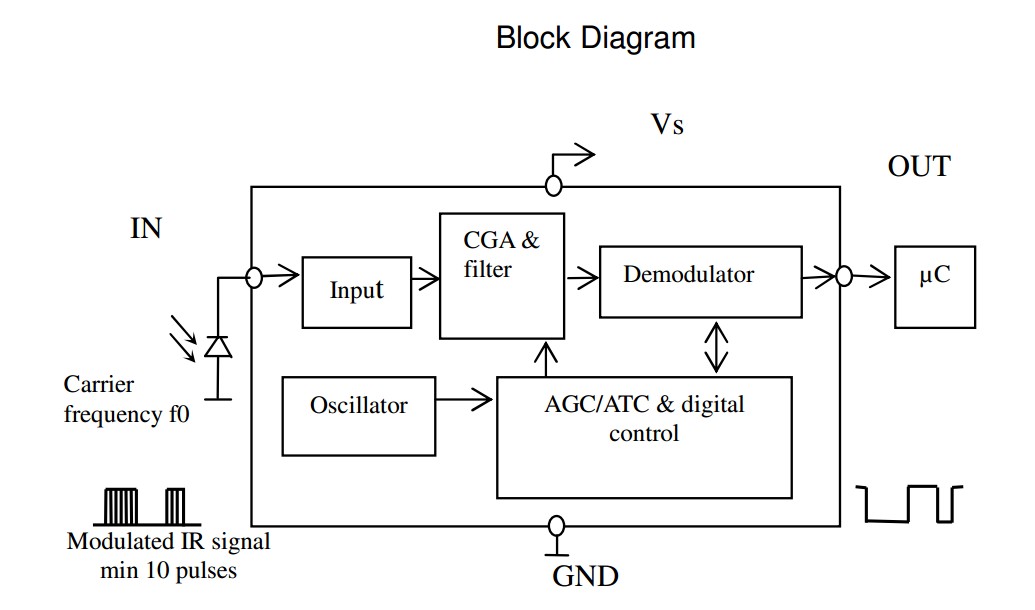

Diagrams
