Product Summary

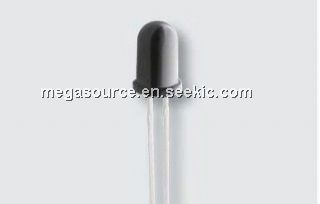

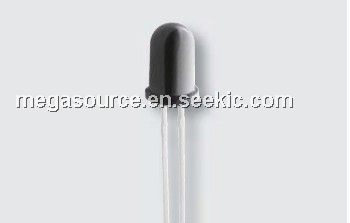

The PD333-3B/L3 is a high speed and high sensitive PIN photodiode in a standard 5 plastic package. Due to its water clear epoxy the device is sensitive to visible and infrared radiation. The applications of the PD333-3B/L3 are High speed photo detector, Security system, Camera.
Parametrics
PD333-3B/L3 absolute maximum ratings: (1)Reverse Voltage VR: 32 V; (2)Power Dissipation Pd: 150 mW; (3)Lead Soldering Temperature Tsol: 260 ℃; (4)Operating Temperature Topr: -40 ~ +85 ℃; (5)Storage Temperature Tstg: -40 ~ +85 ℃.
Features
PD333-3B/L3 features: (1)fast response time; (2)high photo sensitivity; (3)small junction capacitance; (4)pb free; (5)the product itself will remain within rohs compliant version.

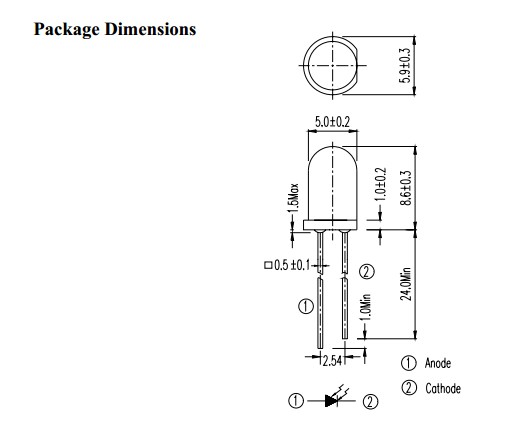

Diagrams
