Product Summary

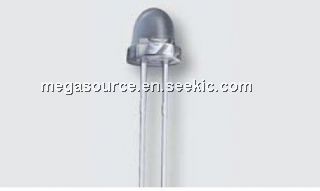

The SIR333C-A 5mm Infrared LED is a high intensity diode , molded in a water clear plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module. The applications of the SIR333C-A are Free air transmission system, Optoelectronic switch, Floppy disk drive, Infrared applied system, Smoke detector.
Parametrics
SIR333C-A absolute maximum ratings: (1)Continuous Forward Current IF: 100 mA; (2)Peak Forward Current *1 IFP: 1.0 A; (3)Reverse Voltage VR: 5 V; (4)Operating Temperature Topr: -40 ~ +85 ℃; (5)Storage Temperature Tstg: -40 ~ +85 ℃; (6)Soldering Temperature *2 Tsol: 260 ℃; (7)Power Dissipation at(or below)25℃ Free Air Temperature Pd: 150 mW.
Features
SIR333C-A features: (1)High reliability; (2)2.54mm lead spacing; (3)Low forward voltage; (4)Good spectral matching to Si photodetector; (5)Pb free; (6)The product itself will remain within RoHS compliant version.
Diagrams
