Product Summary

The T7D-JQ2S1PY is a 1206 Package Chip LED. It is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. The applications of the T7D-JQ2S1PY are Backlighting in dashboard and switch, Telecommunication: indicator and backlighting in telephone and fax, Flat backlight for LCD, switch and symbol, General use.

Parametrics

T7D-JQ2S1PY absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 30 mA; (3)Peak Forward Current (Duty 1/10 @1KHz)IFP: 100 mA; (4)Power Dissipation Pd: 110 mW; (5)Electrostatic Discharge(HBM)ESD: 150 V; (6)Operating Temperature Topr: -40 ~ +85 ℃; (7)Storage Temperature Tstg: -40 ~ +90 ℃.

Features

T7D-JQ2S1PY features: (1)Package in 8mm tape on 7〞diameter reel; (2)Compatible with automatic placement equipment; (3)Compatible with infrared and vapor phase reflow solder process; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain within RoHS compliant version.

Diagrams

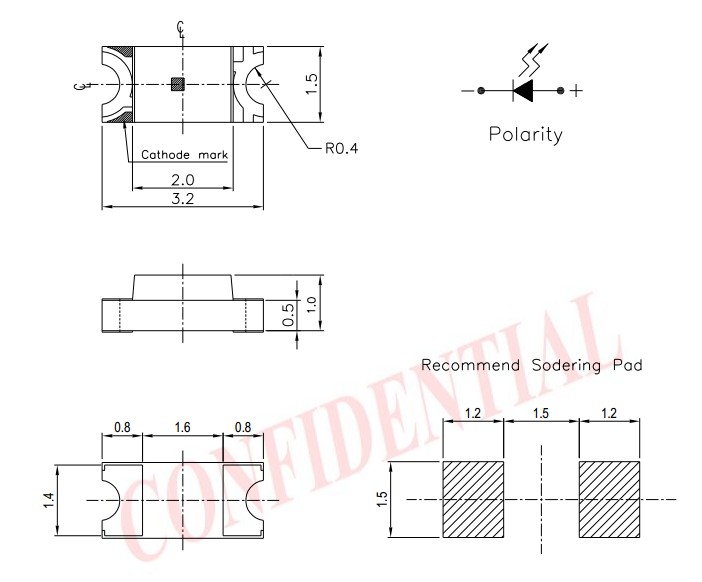

T7D-JQ2S1PY package dimensions
