Product Summary

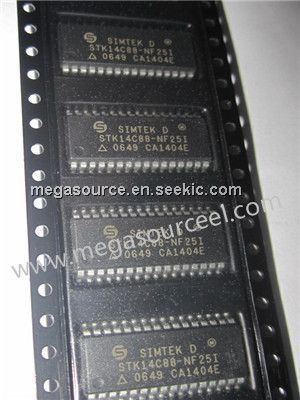

The STK14C88-NF25I is a 256Kb fast static RAM with a non-volatile Quantum Trap storage element included with each memory cell. The STK14C88-NF25I provides the fast access & cycle times, ease of use and unlimited read & write endurance of a normal SRAM. The STK14C88-NF25I is the first monolithic non-volatile memory to offer unlimited writes and reads. It is the highest performance, most reliable non-volatile memory available.
Parametrics
STK14C88-NF25I absolute maximum ratings: (1)Voltage on Input Relative to Ground:–0.5V to 7.0V; (2)Voltage on Input Relative to VSS:–0.6V to (VCC + 0.5V); (3)Voltage on DQ0-7 or HSB:–0.5V to (VCC + 0.5V); (4)Temperature under Bias:–55℃ to 125℃; (5)Storage Temperature:–65℃ to 150℃; (6)Power Dissipation: 1W; (7)DC Output Current (1 output at a time, 1s duration): 15mA.
Features
STK14C88-NF25I features: (1)25,35, 45 ns Read Access & R/W Cycle Time; (2)Unlimited Read/Write Endurance; (3)Automatic Non-volatile STORE on Power Loss; (4)Non-Volatile STORE Under Hardware or Software Control; (5)Automatic RECALL to SRAM on Power Up; (6)Unlimited RECALL Cycles; (7)1 Million STORE Cycles; (8)100-Year Non-volatile Data Retention

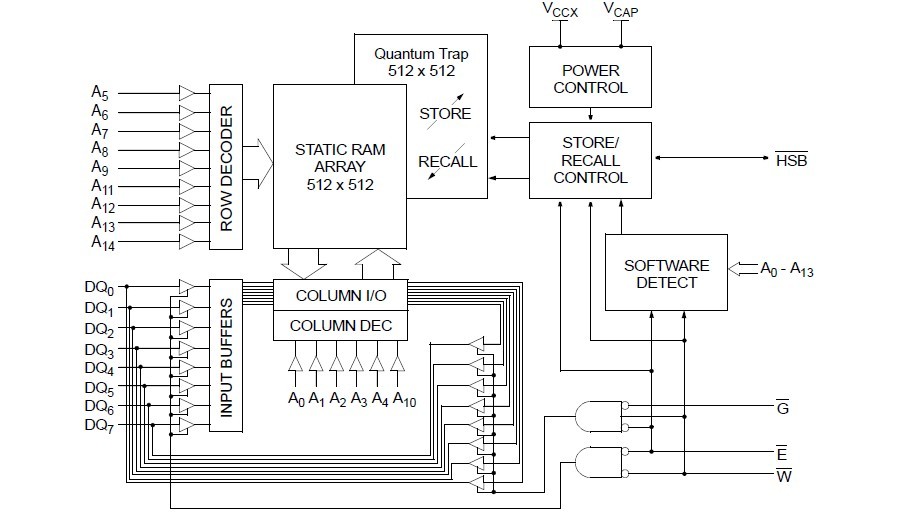

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STK14C88-NF25I |
Cypress Semiconductor |
NVRAM 32Kbx8 3.0-3.6V AutoStore |
Data Sheet |
Negotiable |
|
||||
 |
STK14C88-NF25ITR |
Cypress Semiconductor |
NVRAM 32Kbx8 4.5-5.5V AutoStore |
Data Sheet |
Negotiable |
|
||||
