Product Summary

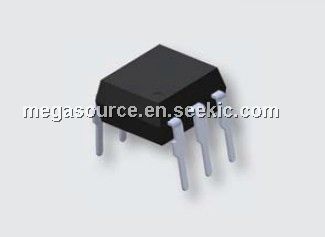

The EL3062 consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon zero voltage crossing photo triac. And this device is designed for use with a discrete power triac in the interface of logic systems to equipment powered from 110 to 240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances. It can be used in (1)Solenoid/valve controls; (2)Light controls; (3)Static power switch; (4)AC motor drivers; (5)E.M. contactors; (6)Temperature controls; (7)AC Motor starters; (8)Solid state relays.
Parametrics
EL3062 absolute maximum ratings: (1)Forward current: 60 mA; (2)Reverse Voltage: 6V; (3)Power Dissipation: 100 mW; (4)Peak repetitive surge current: 1 A; (5)Emitter-Collector voltage: 7 V; (6)Total power dissipation: 300 mW; (7)Storage temperature range: -55 to +125 °C; (8)Isolation voltage: 5000 V rms; (9)Soldering temperature:260 °C; (10)Operating temperature: -55 to +110°C.
Features
EL3062 features: (1)High isolation voltage between input and output (Viso=5000 V rms ); (2)Zero voltage crossing; (3)Pb free and RoHS compliant.; (4)UL approved (No. E214129); (5)VDE approval (pending); (6)SEMKO approval (pending); (7)NEMKO approval (pending); (8)DEMKO approval (pending); (9)FIMKO approval (pending); (10)CSA approval (pending).

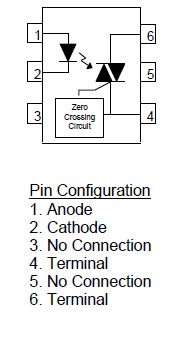

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EL3062 |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3062M-V |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3062S(TA) |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3062S(TB) |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3062S(TB)-V |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3062S1(TA) |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3062S1(TA)-V |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3062S1(TB)-V |
Everlight |
Triac & SCR Output Optocouplers 600PBV 5000Vrms -55 to +100 Op Temp |
Data Sheet |
|
|
||||||||||||||
