Product Summary

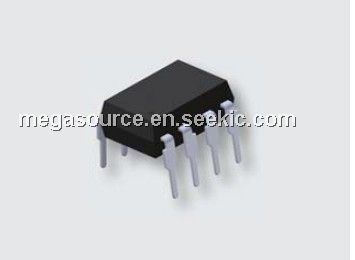

The EL4502 consists of an infrared emitting diode, optically coupled to a high speed photo detector transistor.Also it is packaged in a 8-pin DIP package and available in wide-lead spacing and SMD option. It can be used in (1)Line receivers; (2)Telecommunication equipments; (3)Power transistor isolation in motor drives; (4)Replacement for low speed phototransistor photo couplers; (5)Feedback loop in switch-mode power supplies; (6)Home appliances; (7)High speed logic ground isolation.

Parametrics

EL4502 absolute maximum ratings: (1)Forward current: 25 mA; (2)Reverse Voltage: 5V; (3)Power Dissipation: 45 mW; (4)Peak forward current (50% duty, 1ms P.W):50 mA; (5)Total power dissipation: 100 mW; (6)Storage temperature range: -55 to +125 °C; (7)Isolation voltage: 5000 V rms; (8)Soldering temperature:260 °C; (9)Operating temperature: -55 to +100°C.

Features

EL4502 features: (1)High speed 1Mbit/s; (2)High isolation voltage between input and output (Viso=5000 Vrms ); (3)Guaranteed performance from 0 to 70℃; (4)Wide operating temperature range of -55 to 100℃; (5)Pb free and RoHS compliant; (6)UL approved (No. 214129); (7)VDE approved (No. 132249); (8)SEMKO approved; (9)NEMKO approved; (10)DEMKO approved; (11)FIMKO approved; (12)CSA approved (No. 2037145).

Diagrams

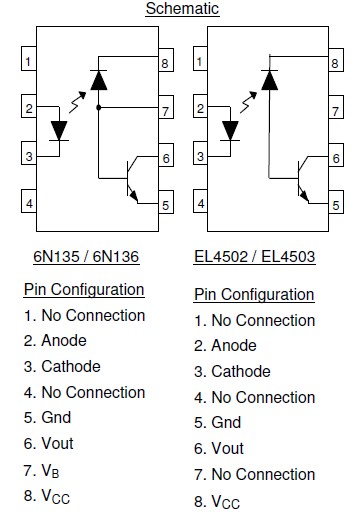

EL4502 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EL4502M
EL4502M

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
EL4502M-V
EL4502M-V

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
EL4502S(TB)
EL4502S(TB)

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
500-1000: $0.29
EL4502S1(TA)-V
EL4502S1(TA)-V

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
500-1000: $0.29
EL4502S1(TB)
EL4502S1(TB)

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
500-1000: $0.29
EL4502S1(TB)-V
EL4502S1(TB)-V

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
500-1000: $0.29
EL4502-V
EL4502-V

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
EL4502S1(TA)
EL4502S1(TA)

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.66
1-50: $0.53
50-100: $0.45
100-500: $0.33
500-1000: $0.29
