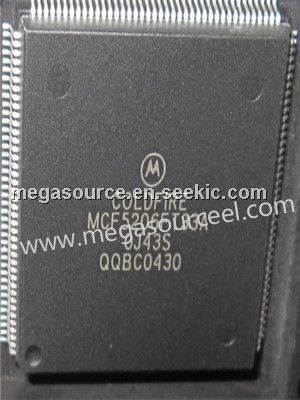

Product Summary

The MCF5206FT33A is an integrated microprocessor. The MCF5206FT33A combines a ColdFire processor core with several peripheral functions such as a DRAM controller, timers, general-purpose I/O and serial interfaces, debug module, and system integration. Designed for embedded control applications, the ColdFire core delivers enhanced performance while maintaining low system costs. To speed program execution, the on-chip instruction cache and SRAM provide one-cycle access to critical code and data. The MCF5206FT33A greatly reduces the time required for system design and implementation by packaging common system functions onchip and providing glueless interfaces to 8-, 16-, and 32-bit DRAM, SRAM, ROM, and I/O devices.

Parametrics

MCF5206FT33A absolute maximum ratings: (1)Supply voltage VDD: -0.3 to +7.0 V; (2)Input voltage Vin: -0.5to V DD + 0.5V V; (3)Storage temperature range Tstg: -55 to 150 °C.

Features

MCF5206FT33A features: (1)ColdFire Processor Core: Variable-length RISC; 32-bit internal address bus with 28 bit external bus; Chip Select and DRAM; internal 32-bit decoding; 32-bit data bus; 16 user-visible 32-bit wide registers; Supervisor / User modes for system protectio; Vector base register to relocate exception-vector table; Optimized for high-level language constructs; 17 MIPS at 33 MHz; (2)512 Byte Direct-mapped instruction cache; (3)512 Byte on-chip SRAM: Provides one-cycle access to critical code and data; (4)DRAM controller: Programmable refresh timer provides CAS-before-RAS refresh; Support for 2 separate memory banks; Support for page-mode DRAMs and extended-data-out (EDO)DRAMs; Allows external bus master access; (5)Dual universal synchronous/asynchronous receiver/transmitter (DUART): Full duplex operation; Baud-rate generator; Modem control signals available (CTS, RTS); Processor-interrupt capability.

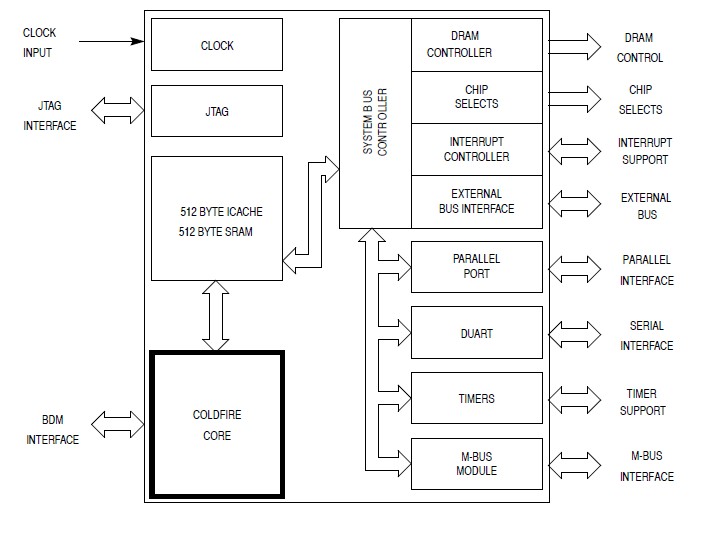

Diagrams

MCF5206FT33A pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

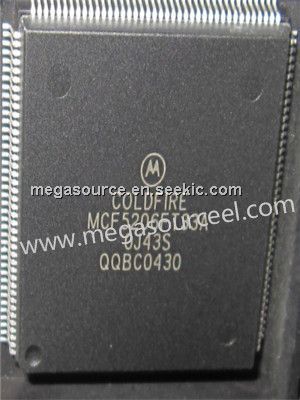

MCF5206FT33A
MCF5206FT33A

Freescale Semiconductor

Microprocessors (MPU) 33MHz 17MIPS

Data Sheet

Negotiable
