Product Summary

The SRD-05VDC-SL-C is a Low Capacitance TVS Array which has been specifically designed to protect sensitive components. It is connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The SRD-05VDC-SL-Cis constructed using Semtechs proprietary EPD process technology. The SRD-05VDC-SL-C is in a 8-pin SOIC package. It measures 3.9 x 4.9mm. The SRD-05VDC-SL-C is available with a SnPb or RoHS/WEEE compliant matte tin lead finish.

Parametrics

SRD-05VDC-SL-C absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs) Ppk: 500 Watts; (2)Peak Pulse Current (tp = 8/20μs) IPP: 25 A; (3)Lead Soldering Temperature TL: 260 (10 sec.)℃; (4)Operating Temperature TJ: -40 to +85℃; (5)Storage Temperature TSTG: -55 to +150℃; (6)Reverse Stand-Off Voltage VRWM: 3.3 V; (7)Punch-Through Voltage VPT IPT = 2μA: 3.5 V; (8)Snap-Back Voltage VSB ISB = 50mA: 2.8 V; (9)Reverse Leakage Current IR VRWM = 3.3V, T=25℃: 1 μA; (10)Clamping Voltage VC I PP = 1A, tp = 8/20μs: 5.3 V; (11)Clamping Voltage VC I PP = 10A, tp = 8/20μs: 10 V; (12)Clamping Voltage VC I PP = 25A, tp = 8/20μs: 15 V; (13)Junction Capacitance Cj Between I/O pins and Ground VR = 0V, f = 1MHz: 8 to 15 pF; (14)Between I/O pins VR = 0V, f = 1MHz: 4 pF.

Features

SRD-05VDC-SL-C features: (1)Array of surge rated diodes with internal TVS diode; (2)Protects four I/O lines; (3)Low capacitance (<15pF) for high-speed interfaces; (4)Low operating voltage: 3.3V; (5)Low clamping voltage; (6)Solid-state technology; (7)JEDEC SOIC-8 package; (8)Lead Finish: SnPb or Matte Sn; (9)Molding compound flammability rating: UL 94V-0; (10)Marking : Part number, date code, logo; (11)Packaging : Tape and Reel per EIA 481.

Diagrams

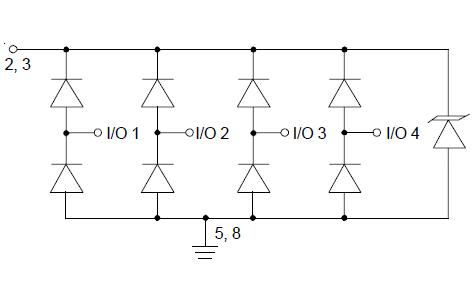

SRD-05VDC-SL-C block diagram
