Product Summary
The g4w-11123t-us-tv8- is a PCB power relay.
Parametrics
g4w-11123t-us-tv8- absolute maximum ratings: (1)Rated voltage: 100 VDC; (2)Rated current: 66.7 mA; (3)Coil resistance: 12,500 Ω; (4)Power consumption: 800 mW.
Features
g4w-11123t-us-tv8- features: (1)Creepage distance of 8 mm min; (2)Dielectric strength of 4,000 VAC min; (3)SPST-NO types conform to TV-8 rating; (4)DPST-NO types conform to TV-5 rating; (5)International 2.54mm terminal pitch.

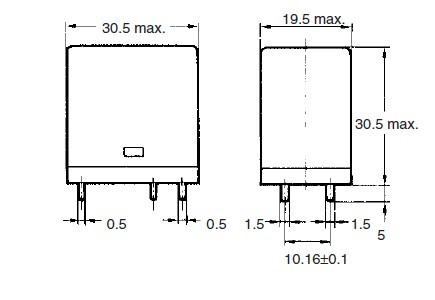

Diagrams
