Product Summary

The g5a-234p-48v is a low signal relay.




Parametrics

g5a-234p-48v absolute maximum ratings: (1)Contact resistance (See note 2): 50 mΩ max; (2)Operate (set)time: 5 ms. max.; (3)Impulse Withstand Voltage (See notes 4 & 5): 1,500 V; (4)Vibration Mechanical durability: 10 to 55 Hz; (5)Ambient temperature: -40 to 70°C; (6)Humidity: 5% to 85% RH.

Features

g5a-234p-48v features: (1)Subminiature 8.40 H x 9.90 W x 16 L mm; (2)Unique moving-loop armature reduces relay size, magnetic interference, and contact bounce time.; (3)Low nominal power consumption.; (4)Bifurcated crossbar contact assures reliable switching of loads as low as 10 mVDC, 0.1 mA (reference value).; (5)Available in standard and ultrasonic cleaning versions.; (6)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock.; (7)Single or double coil winding types available.; (8)RoHS Compliant.

Diagrams

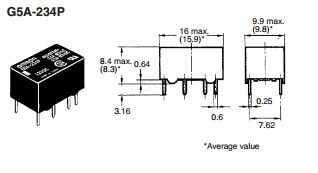

g5a-234p-48v pin connection
